Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base -TX
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
Board Guide JXD2-0011NL 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-TX, AutoMDIX
Description:
- Gigabit Transf. Modules With PoE
- 100-1000M Single Port Tab
- 10-100M Single Port Tab
- ADSL Line Transformer-05
- 10-100M Dual Port Transf. Mods.
- ADSL Line Transformer-01
- 1000M Single Port Tab
- 64 KBPS Interface Transformers T r x
- 10-100M Quad Port Transf. Mods.
- 1000M Single Port Tab
- VDSL Transformers
Feature:
Part Status: Active
Connector Type : RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-TX, AutoMDIX
Mounting Type: Through Hole
Orientation: Vertical
Termination: Solder
Height Above Board: 0.663" (16.85mm)
LED Color: Does Not Contain LED
Number of Cores per Jack: 4
Shielding: Shielded
Features: Board Guide
Tab: Direction User Selectable
Contact Material: Copper Alloy
Contact: Finish Gold
Operating Temperature: -40°C ~ 85°C
Contact Finish Thickness: 30.0µin (0.76µm)
Shield Material: Brass

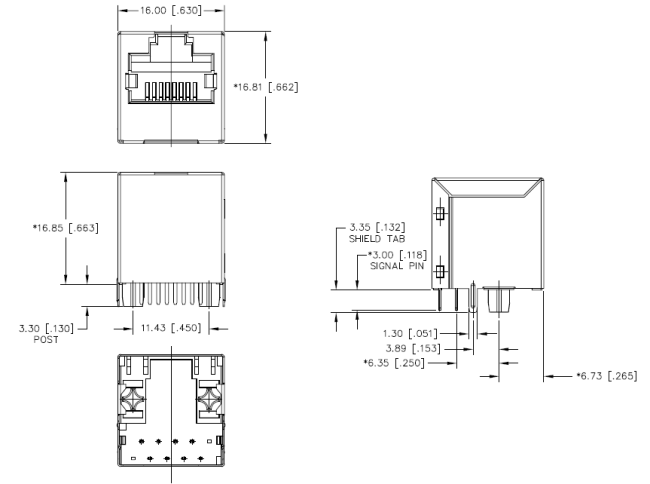

Dimension:
