PQ3218-6R0-50-G Surface Mount Power Inductors Flat Type For Aerospace / Industrial
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
SMD Power Inductor PQ3218-6R0-50-G for Aerospace and Industrial
Standard PN Datasheet
| Part Number |
Core Style |
Height (mm) |
Nom. Amps |
Inductance (μH) |
DCR (mΩ) Nom. |
Isat (A) typ 10% drop |
Isat (A) typ 20% drop |
| PQ2007-0R4-70-G or T | PQ20 | 7 | 70 | 0.4 | 0.7 | 71 | 83 |
| PQ2006-1R0-30-G or T | PQ20 | 6 | 30 | 1.0 | 1.0 | 35 | 39 |
| PQ2006-1R0-30-G or T | PQ20 | 7 | 25 | 2.2 | 3.5 | 29 | 32 |
| PQ2007-4R4-15-G or T | PQ20 | 7 | 15 | 4.4 | 3.6 | 16 | 18 |
| PQ2613-1R0-80-G or T | PQ26 | 13 | 80 | 1.0 | 1.2 | 110 | 120 |
| PQ3213-0R9-70-G or T | PQ32 | 13 | 70 | 0.9 | 1.0 | 100 | 110 |
| PQ3218-3R3-70-G or T | PQ32 | 18 | 70 | 3.3 | 1.1 | 74 | 80 |
| PQ3218-6R0-50-G or T | PQ32 | 18 | 50 | 6.0 | 1.5 | 51 | 57 |

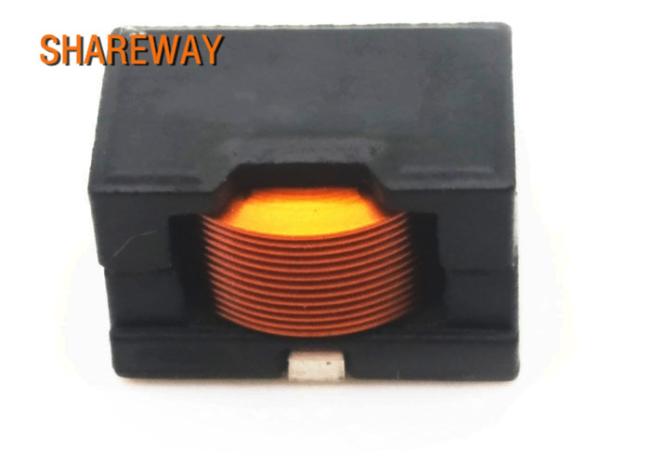

Picture:
