MHA0412NSGR33M SMD Power Inductor 0.33-4.70uH For High Current Power Supplies
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
MHA0412NSGR33M SMD Power Inductor For High Current Power Supplies
Description:
| Part number |
Inductance (uH±20%) |
DCR(mΩ)@25℃ TYP. |
DCR(mΩ)@25℃ MAX. |
Irms (A) |
Isat (A) |
| MHA0412NSGR33M | 0.33 | 17.00 | 19.00 | 6.50 | 8.40 |
| MHA0412NSGR47M | 0.47 | 19.00 | 21.00 | 6.00 | 6.80 |
| MHA0412NSGR68M | 0.68 | 32.00 | 36.00 | 4.50 | 6.00 |
| MHA0412NSG1R0M | 1.00 | 43.00 | 47.00 | 4.20 | 5.20 |
| MHA0412NSG1R5M | 1.50 | 68.00 | 75.00 | 3.25 | 4.00 |
| MHA0412NSG2R2M | 2.20 | 79.40 | 83.5 | 2.75 | 3.50 |
| MHA0412NSG4R7M | 4.70 | 175.0 | 195.0 | 1.80 | 2.80 |

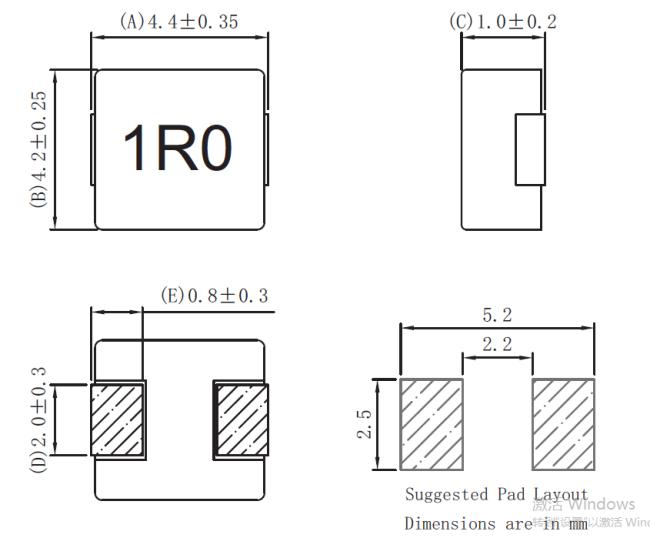

Dimensions:
