4.7uH 0.76A SMD Power Inductor Reflow Soldering NRV2010T4R7MGF Halogen Free
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
4.7uH±20%, 0.76A, 2.0x2.0x1.0mm Power Inductor NRV2010T4R7MGF
Description:
| Part number | NRV2010T4R7MGF |
| Brand | Shareway |
| Inductance | 4.7 uH ± 20 % |
| Size (mm) | 2.0x2.0 |
| Rated Current (max) | 0.76 A |
| Saturation Current (max) | 0.76 A (⊿L=30%) |
| Saturation Current (typ) | 0.81 A (⊿L=30%) |
| Temperature Rise Current (max) | 0.82 A (⊿T=40℃) |
| Temperature Rise Current (typ) | 0.93 A (⊿T=40℃) |
| DC Resistance (max) | 0.384 Ω |
| DC Resistance (typ) | 0.32 Ω |
| LQ Measuring Frequency | 100 kHz |
| Operating Temp. Range | -25 to +120 ℃ (Including-self-generated heat) |

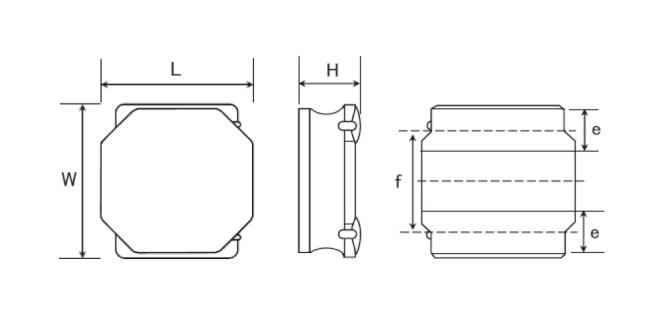

Dimensions:
