S Type SMD Power Inductors High Current NR Series NRS2012T1R5NGJ Halogen Free
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
High Current NR series S type SMD Power Inductors NRS2012T1R5NGJ
Description:
| Part number | NRS2012T1R5NGJ |
| Brand | Shareway |
| Inductance | 1.5 uH ± 30 % |
| Case Size (mm) | 2.0x2.0 |
| Rated Current (max) | 1.5 A |
| Saturation Current (max) | 1.65 A (⊿L=30%) |
| Saturation Current (typ) | 1.8 A (⊿L=30%) |
| Temperature Rise Current (max) | 1.5 A (⊿T=40℃) |
| Temperature Rise Current (typ) | 1.65 A (⊿T=40℃) |
| DC Resistance (max) | 108 mΩ |
| DC Resistance (typ) | 90 mΩ |
| LQ Measuring Frequency | 100 kHz |
| Operating Temp. Range | -25 to +120 ℃ (Including-self-generated heat) |
|
Temperature characteristic (Inductance change) |
± 20 % |
| RoHS Compliance (10 subst.) | Yes |
| REACH Compliance (201 subst.) | Yes |
| Halogen Free | Yes |
| Soldering | Reflow |

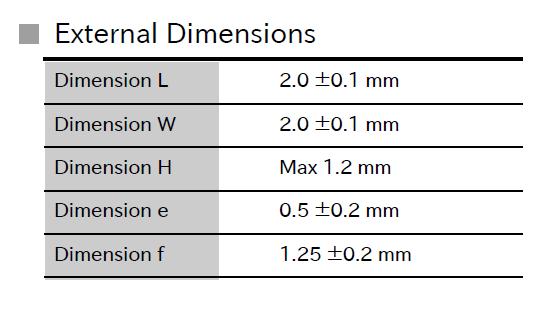

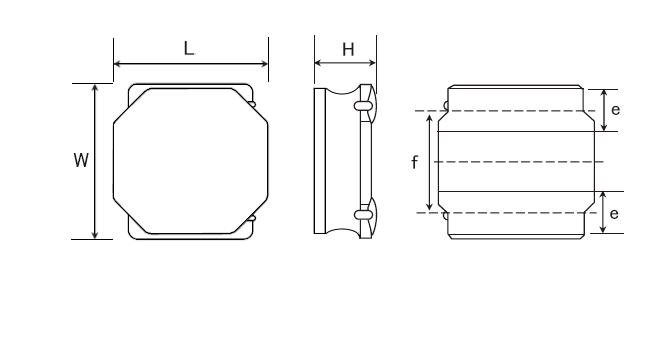

Dimensions:
