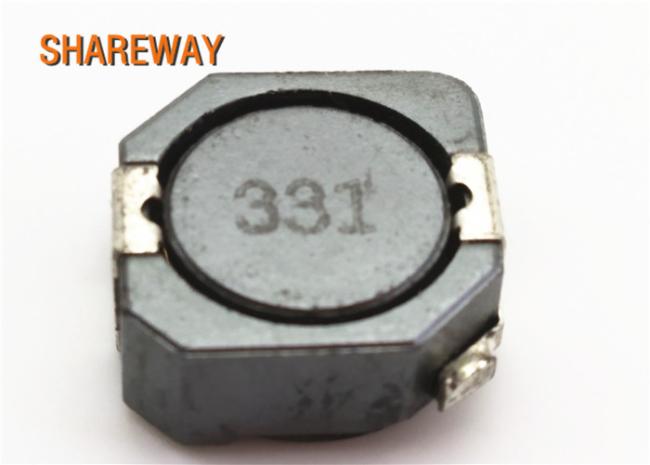

SMD Power Iron Core Ferrite Bead Inductor NRV2010T2R2MGF With RoHS Approval
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
NRV2010T2R2MGF SMD Power Iron Core Ferrite Bead Inductor With RoHS
Description:
| Part number | NRV2010T2R2MGF |
| Brand | Shareway |
| Inductance | 2.2 uH ± 20 % |
| Case Size (mm) | 2.0x2.0 |
| Rated Current (max) | 1.1 A |
| Saturation Current (max) | 1.1 A (⊿L=30%) |
| Saturation Current (typ) | 1.2 A (⊿L=30%) |
| Temperature Rise Current (max) | 1.1 A (⊿T=40℃) |
| Temperature Rise Current (typ) | 1.2 A (⊿T=40℃) |
| DC Resistance (max) | 0.21 Ω |
| DC Resistance (typ) | 0.175 Ω |
| LQ Measuring Frequency | 100 kHz |
| Operating Temp. Range | -25 to +120 ℃ (Including-self-generated heat) |
|
Temperature characteristic (Inductance change) |
± 20 % |
| RoHS Compliance (10 subst.) | Yes |
| REACH Compliance (201 subst.) | Yes |
| Halogen Free | Yes |
| Soldering | Reflow |
Dimensions:
