Low Resistance Surface Mount Power Inductors 10.1mm Width NS10145T1R5NNA For Microwave
Price:
Supportive
MOQ:
500/1000
Delivery Time:
Stock Or 3 weeks
Brand:
Shareway
Product Description
NS10145T1R5NNA Low resistance SMD Power Inductor For Microwave
Description:
| Inductance | 1.5 uH ± 30 % |
| Case Size (mm) | 10.1x10.1 |
| Rated Current (max) | 7.99 A |
| Saturation Current (max) | 10.34 A (⊿L=30%) |
| Temperature Rise Current (max) | 7.99 A (⊿T=40℃) |
| DC Resistance (max) | 7.2 mΩ |
| DC Resistance (typ) | 6 mΩ |
| LQ Measuring Frequency | 100 kHz |
| Self Resonant Frequency (min) | 72.1 MHz |
| Operating Temp. Range |
-40 to +125 ℃ (Including-self-generated heat) |
|
Temperature characteristic (Inductance change) |
± 15 % |
| RoHS Compliance (10 subst.) | Yes |
| Soldering | Reflow |

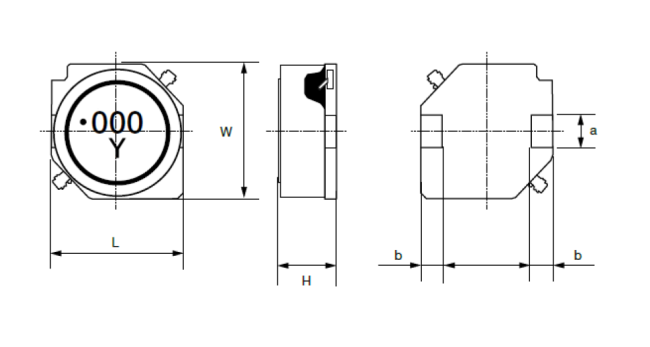

Dimensions:
Features
Item Summary
1.5uH±30%, 7.99A, 10.1x10.1x4.5mm
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 2000pcs(500pcs*4reel)
