SU Coils 10mH Surface Mount Choke SU9H-01100 SU9H-R03090
Applications
• Audio-visual equipment
• Office automation equipment
• Digital appliances
• Power supplies
Benefits
• Proprietary 5H and 7H ferrite material and equivalents
• Suitable for ≥ 150 kHz range
• Wide variety of sizes and specifications
• Operating temperature range from −25°C to +120°C
• UL 94 V–0 flame retardant rated bobbin
Performance Characteristics
| Item | Performance Characteristics |
| Rated Voltage | 250 VAC |
| Withstanding Voltage | 2,400 VAC (2 seconds, between lines) |
| Insulation Resistance | > 100 MΩ at 500 VDC (between lines) |
| Rated Current Range | 0.1 – 1.0 A |
| Rated Inductance Range | 0.5 – 18.0 mH minimum |
| Inductance Measurement Condition | 1 kHz |
| Thermal Class | E (120°C) |
| Operating Temperature Range | −25°C to +120°C (include self temperature rise) |
Part Number:SU9H-01100,SU9H-02080,SU9H-03050,SU9H-05020,SU9H-07010,SU9H-10005,
SU9H-R01180,SU9H-R02140,SU9H-R03090,SU9H-R05034,SU9H-R07017,SU9H-R10008

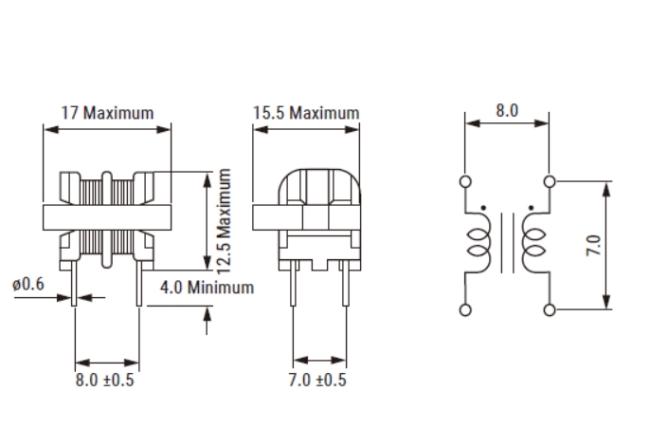

Shape and Dimensions:
