CDRH74NP-XxxMC-B SMD Power Inductor CDRH74 Series Ferrite Drum Core Shielded
CDRH74NP-xxxMC-B SMD Power Inductor CDRH74 Series Ferrite drum core shielded Inductor for DC to AC Inverters
Product Description
- Ferrite drum core construction inductor, which leads to a low-cost product.
- Magnetically shielded power inductor, better EMI performance.
- L x W x H: 7.5 x 7.5 x 4.5 mm Max
- RoHS compliance product
- 500 or 1000pcs per reel.
- These inductors have a small size PCB layout, which is Ideally used in Notebook PC, LCD TV, DVD, Game machine, STB, Projector, etc as DC-DC Converter inductors.
Electrical Characteristics of the CDRH74NP-xxxMC-B SMD Power Inductor CDRH74 Series Ferrite drum core shielded Inductor for DC to AC Inverters:
| Part Number | Trader Part Number | Stamp | Inductance (uH) @ 1kHz | DCR (ohm) Max | Rated Current (A) |
| SDRH74-100M | CDRH74NP-100MC-B | 100 | 10±20% | 49m | 1.84 |
| SDRH74-120M | CDRH74NP-120MC-B | 120 | 12±20% | 58m | 1.71 |
| SDRH74-150M | CDRH74NP-150MC-B | 150 | 15±20% | 81m | 1.47 |
| SDRH74-180M | CDRH74NP-180MC-B | 180 | 18±20% | 91m | 1.31 |
| SDRH74-220M | CDRH74NP-220MC-B | 220 | 22±20% | 0.11 | 1.23 |
| SDRH74-270M | CDRH74NP-270MC-B | 270 | 27±20% | 0.15 | 1.12 |
| SDRH74-330M | CDRH74NP-330MC-B | 330 | 33±20% | 0.17 | 0.96 |
| SDRH74-390M | CDRH74NP-390MC-B | 390 | 39±20% | 0.23 | 0.91 |
| SDRH74-470M | CDRH74NP-470MC-B | 470 | 47±20% | 0.26 | 0.88 |
| SDRH74-560M | CDRH74NP-560MC-B | 560 | 56±20% | 0.35 | 0.75 |
| SDRH74-680M | CDRH74NP-680MC-B | 680 | 68±20% | 0.38 | 0.69 |
| SDRH74-820M | CDRH74NP-820MC-B | 820 | 82±20% | 0.43 | 0.61 |
| SDRH74-101M | CDRH74NP-101MC-B | 101 | 100±20% | 0.61 | 0.60 |
| SDRH74-121M | CDRH74NP-121MC-B | 121 | 120±20% | 0.66 | 0.52 |
| SDRH74-151M | CDRH74NP-151MC-B | 151 | 150±20% | 0.88 | 0.46 |
| SDRH74-181M | CDRH74NP-181MC-B | 181 | 180±20% | 0.98 | 0.42 |
| SDRH74-221M | CDRH74NP-221MC-B | 221 | 220±20% | 1.17 | 0.36 |
| SDRH74-271M | CDRH74NP-271MC-B | 271 | 270±20% | 1.64 | 0.34 |
| SDRH74-331M | CDRH74NP-331MC-B | 331 | 330±20% | 1.86 | 0.32 |
| SDRH74-391M | CDRH74NP-391MC-B | 391 | 390±20% | 2.85 | 0.29 |
| SDRH74-471M | CDRH74NP-471MC-B | 471 | 470±20% | 3.01 | 0.26 |
| SDRH74-561M | CDRH74NP-561MC-B | 561 | 560±20% | 3.62 | 0.23 |
| SDRH74-681M | CDRH74NP-681MC-B | 681 | 680±20% | 4.63 | 0.22 |
| SDRH74-821M | CDRH74NP-821MC-B | 821 | 820±20% | 5.20 | 0.20 |
| SDRH74-102M | CDRH74NP-102MC-B | 102 | 1000±20% | 6.00 | 0.18 |

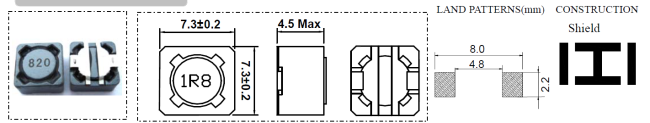

Dimensions (mm):
Product Photo:
