High Air Pressure Atlas Copco Drilling Tools 90mm 105mm Cop34 Convex Drill Bit
High Air Pressure Atlas Copco 90mm 105mm Cop34 DTH Drill Bits For Rock Drilling
SOLLROC is a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customers all over the world, such as France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.
Product specifications:
| Hammer: COP 34, DHD3.5 | ||||||
| Diameter mm | Part No. | Buttons x Button diam(Gauge outer, Gauge inner, Centre, Cone) | Gauge buttons angle o (Outer, Inner, Cone) | Flushing holes (No. x size mm) | Weight approx. kg | Foot valve Part No. |
| Flat front, HD | ||||||
| 90 | 100-5090-31,24-20* | 8x12.7, - ,7x11, - | 35, - , - | 2 | 5.8 | 9279 |
| 92 | 100-5092-31,24-20 | 8x12.7, - ,7x11, - | 35, - , - | 2 | 5.8 | 9279 |
| 95 | 100-5095-31,24-20 | 8x12.7, - ,7x11, - | 35, - , - | 2 | 5.9 | 9279 |
| 100 | 100-5100-31,24-20 | 8x12.7, - ,7x12.7, - | 35, - , - | 2 | 6.1 | 9279 |
| 105 | 100-5105-31,24-20 | 8x14.5, - ,7x12.7, - | 35, - , - | 2 | 6.3 | 9279 |
| SpeedBit | ||||||
| 92 | 100-5092-31-55,24-20 | 8x12.7, - ,7x11, - | 35 | 2 | 5.8 | 9279 |
| 95 | 100-5095-31-55,24-20 | 8x12.7, - ,7x11, - | 35 | 2 | 5.9 | 9279 |
| 100 | 100-5100-31-55,24-20 | 8x12.7, - ,7x12.7, - | 35 | 2 | 6.1 | 9279 |
| 105 | 100-5105-31-55,24-20 | 8x14.5, - ,7x12.7, - | 35 | 2 | 6.3 | 9279 |
| Convex front, Ballistic | ||||||
| 92 | 100-5092-31-61,24-20 | 7x12.7, 4x12.7, 2x12.7, - | 40, 20, - | 2 | 5.8 | |
| 95 | 100-5095-31-61,24-20 | 7x12.7, 4x12.7, 2x12.7, - | 45, 30, - | 2 | 5.9 | |
| 100 | 100-5100-31-61,24-20 | 7x12.7, 4x12.7, 2x12.7, - | 45, 30, - | 2 | 6.1 | |
| 105 | 100-5105-31-61,24-20 | 7x14.5, 4x14.5, 2x14.5, - | 45, 30, - | 2 | 6.3 | |
1. High and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.: 65-220mm
3. High air pressure hole Dia.: 85-305mm
4. Face type: Drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts .
2. We have advanced technology and equipment.
3. Our technician has more than 10 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA,
Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.

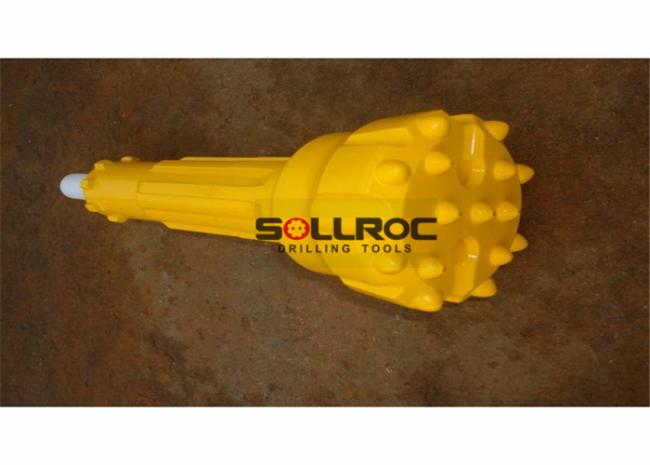

Product photos
