T38 T45 T51 R32 R38 Shank Adaptors For Top Hammer Drilling Rock Tools
T38 T45 T51 R32 R38 Shank Adaptors For Top Hammer Drilling Rock Tools
Product Specification:
Our rock drill shank adapters are available for:
(1) Size: R28, R32, R38, T38, T45, T51, T60.
(2) Package: In wooden case or in bundles.
Shank adapters
The shank adapters are manufactured from specially selected alloy steels followed by heat treatment through carburizing which withstands the high impact power of drilling.
There's a multitude of drilling rigs on the market today. Each use different rock drills. That's why we offer a comprehensive range of shank adapters to match different rock drills.
The shank adapters are therefore designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through carburizing. Around 300 different shank adapters suitable for different rock drills are currently available from world top brand.
Various shanks adapters can be produced according to the samples and the model of rock drill the customer provided.
Specification:
| Thread | Model of Rock Drill | Length(mm) | Weight(kg) |
| R32 | HD120/200,M120 | 349.3 | 3.12 |
| R32 | PR123,PR133 | 349.3 | 3.12 |
| R32 | Evl130, VL120/140 | 349.3 | 3.12 |
| R38 | BBE 51/52/57 | 448 | 4.9 |
| R38 | HD120/200,M120 | 349.3 | 3.26 |
| R38 | Evl130, VL120/140 | 349.3 | 3.26 |
| R38 | VCR260/360 | 390.5 | 3.6 |
| R38 | H100 | 448 | 4.9 |
| R38 | HL844 | 448 | 4.9 |
| R38 | L600 / 750 | 349.3 | 3.26 |
| T38 | BBE56/57 | 530.4 | 5.5 |
| T38 | COP1036/1038 | 590 | 5 |
| 1038ME/1238ME | |||
| T38 | HD120/200,M120 | 349.3 | 3.4 |
| T38 | PD200 | 484 | 3.6 |
| T38 | HPR1H(12 Spline) | 725 | 6.8 |
| T38 | PR123/133/55 | 349.3 | 3.4 |
| T38 | ELV130 | 349.3 | 3.4 |
| T38 | ELV130 | 349.3 | 3.4 |
| T38 | HC80RP (shot) | 669 | 7.9 |
| T38 | VL120/140 | 349.3 | 3.4 |
| T38 | VCR260/360 | 390.5 | 3.6 |
| T38 | HC80 | 591 | 6.68 |
| T38 | HC80RP(Shot) | 669 | 7.9 |
| T38 | HC80RP(Long) | 771 | 8.5 |
| T38 | HL438/538/844 | 495 | 3.6 |
| T38 | L600/750 | 349.3 | 3.4 |
| T45 | BBE56/57/57-01 | 530.4 | 5.7 |
| T45 | Cop1036/1038 | 590 | 5 |
| /1238ME | |||
| T45 | HD120/200,M120 | 349.3 | 3.6 |
| T45 | HPR1H 12Spline | 725 | 5.7 |
| T45 | PR132 | 349.3 | 5 |
| T45 | PR66 | 558.8 | 3.6 |
| T45 | EVL130,VL140 | 349.5 | 5 |
| 12 Spline | |||
| T45 | EVL130, VL120/140 | 558.8 | 3.6 |
| T45 | VL671 w 3/4" tube | 349.5 | 5.9 |
| T45 | VL671 w 9/16" tube | 533.4 | 6 |
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters

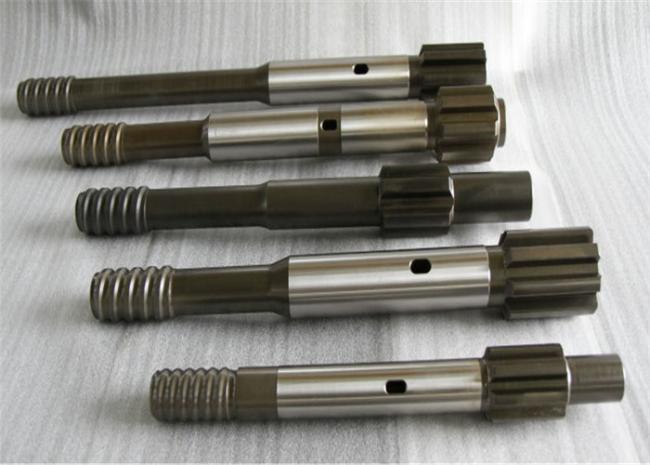

Product Photos
About Us:
Sollroc with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools.
