Low Air Pressure CIR110 DTH Bit Rock Drill Bits for Rock Drilling

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 3-4 weeks

Brand: SOLLROC

Product Description

Low Air Pressure CIR110 DTH Bit Rock Drill Bits for Rock Drilling

Description:

CIR110 DTH Button Bits for Drilling Hole
1. High and low air pressure down-the-hole drill bits
2. Low air pressure holeDia.: 65-220mm
3. High air pressure hole Dia.: 85-305mm
4. Face type: Drop center/concave/convex/double gauge/flat
5. Our DTH Bit can be suitable for many types of DTH Hammer, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.
6. Inch available: 3", 4", 5", 6", 8", 12", etc...
Low Air Pressure DTH Hammer:

Model	OD*TL(mm)	Air pressure(Mpa)	Air consumption (m3/min.)	bits diameter shankspline no.	impact frequency (strike/min.)	weight(kg)
CIR55	Φ48*657	0.5-0.7	2.0-2.5	55-60314	840	6
CIR60	Φ53*657	0.5-0.7	2.5-3.5	58-65344	840	7
CIR70	Φ61*765	0.5-0.7	3.5	70424	840	9
CIR76	Φ66*765	0.5-0.7	3.5-5.0	76444	840	14
CIR80	Φ78*446	0.5-0.7	4.0-6.0	803545(flat)	940	12
CIR80A	Φ72*795	0.5-0.7	5.0	80506	840	15
CIR80B	Φ76*785(4spline)	0.5-0.7	6.0	90524	810	19
CIR80B	Φ76*777(6spline)	0.5-0.7	6.0	90546	810	19
CIR90	Φ80*800	0.5-0.7	7.2	90-100546	840	20
CIR100	Φ90*434	0.5-0.7	8.0	100-13050flat	820	19
CIR100A	Φ90*715	0.5-0.7	10.0	105-115564	820	24
CIR100B	Φ95*847	0.5-0.7	12.0	110-115604	820	30
CIR100B	Φ95*847	0.5-0.7	12.0	110-115656	820	30
CIR110	Φ98*871	0.5-0.7	12.0	110-120656	820	37
CIR150B	Φ136*908	0.5-0.7	15.0	150-165908	850	68
CIR150C	Φ142*913	0.5-0.7	17.0	155-165906	850	69
CIR150C	Φ135*687	0.5-0.7	13.0	155808	860	43
CIR170A	Φ156*1022	0.5-0.7	19.5	170-175986	840	102
CIR200A	Φ188*1120	0.5-0.7	24.0	2101206	840	163

Low Air Pressure DTH Button Bit:

Dia(mm)	button			flushing hole	spline	weight(kg)	product no.	suitable hammer
Dia(mm)	Gauge	gauge-front	front	flushing hole	spline	weight(kg)	product no.	suitable hammer
60	4-12	2-10		1	34*4		DHP60B-34*4	CIR60
	4-12	3-12		1	37*4		DHP65B-37*4	CIR60
76	5-13	3-12		2	44*4	2.5	DHP76C-44*4	CIR76
76	6-13	4-12		3	44*4	2.5	DHP76D-44*4	CIR76
76	5-12	3-12		2	44*4	2.5	DHP76C1-44*4	CIR76
80	6-12	4-11		3	50*6		DHP80D-50*6	CIR80A
80	5-14	3-12		2	50*6	3.6	DHP80C-50*6	CIR80A
90	6-14	4-12		3	50*6	3.5	DHP90D-50*6	CIR80A
90	6-14	4-12		3	54*6	3.5	DHP90D-54*6	CIR90
90	6-14	2-13	2-12	2	54*6		DHT90D-54*6	CIR90
95	6-14	2-13	2-12	2	54*6	3.7	DHT95D-54*6	CIR90
100	6-14	3-13	2-12	2	54*6	3.7	DHT100D-54*6	CIR90
105	6-14	2-13	3-12	3	60*4		DHT105D-60*4	J-100B
110	6-14	4-13	3-12	2	60*4		DHT110D-60*4	J-100B
110	6-14	2-13	3-12	2	65*6	6.3	DHT110D-65*6	CIR110
120	6-14	5-13	2-13	3	65*6	6.8	DHT120D-65*6	CIR110
130	6-14	7-13		3	65*6	7.5	DHP130D-65*6	CIR110
150	8-16	5-14	3-14	2	90*6	18	DHT150F-90*6	CIR150C
150	9-16	6-16	4-14	3	90*6	18	DHT150G-90*6	CIR150C
155	8-16	6-14	3-14	2	90*6	19	DHT155F-90*6	CIR150C
165	8-16	6-14	4-14	2	90*6	21	DHT165F-90*6	CIR150C
175	9-16	6-14	9-14	3	98*6	22	DHT175G-98*6	CIR170A
210	15-18	7-16	2-16	3	120*6	30	DHT210N-120*6	CIR200A

We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc

Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.

Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard

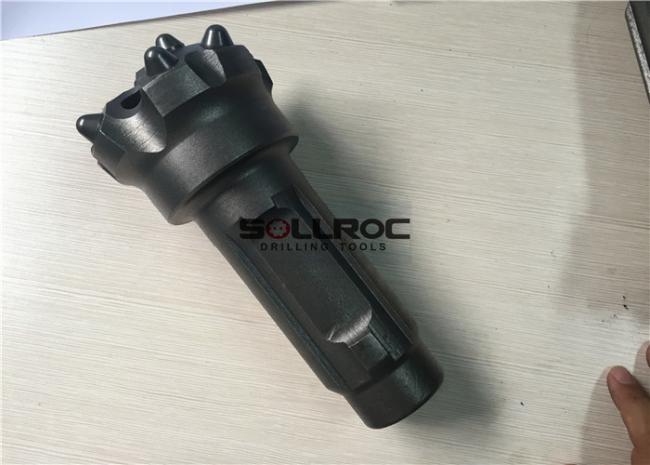

Product photos
