Product specifications: SC220
The SC220 Button Bit Grinder is a high powered tool for worn button bit sharpening. It is configured for hand-held use by ergonomic placement of a very efficient throttle and support handle. Simplicity in design combined with the latest manufacturing techniques gives the operator a powerful tool for the most demanding job.
SC220 hand-held grinding machines have quickly established themselves as dependable and versatile machines, credited by the professionals and CE approved.
Our Air Grinders require a clean and dry air supply of a minimum 80 psi and 29 cfm passing through an in-line oiler to supply lubrication to the grinder. Also, a supply of water from a mains supply or a sump is required to act as a coolant during the grinding process.
| Model | SC220 |
| Max working air pressure | 7 bar (100 psi) |
| Air Consumption | 2.0 m3/min |
| Power Output: | 1.5 kw |
| Spindle Speed | 22000 RPM |
| Air Hose Diameter | 16 mm |
| Water Hose Diameter | 8 mm |
| Sound Level | 90 dB |
| Grinding range | 6-25 mm |
| Gross weight | 4 kg |
There are different models for your choice:
8mm shank model,
9mm shank model,
internal hex drive model, etc..

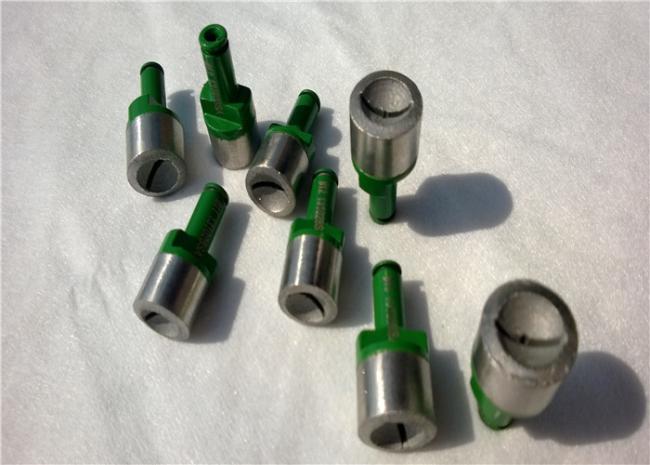

Our grinding cup can be used for grinding 7mm-25mm button size. Other sizes available on request.
These grinding cups can be used for grinding both the bit button and body steel in one operation.
The combination grinding pin benefits from a specially developed grinding material capable of grinding both carbide and steel at a regular and consistent rate.
| For bit's button shape | For bit's button size (mm) |
| spherical buttons ballistic buttons | 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 |
| bit's body steel removal | 7-8 9-10 11-12 13-14 15-16 17-18 19-20 |
Available with a choice of Hemispherical, Ballistic Semi Ballistic, Paraboloid or Conical cups.
