6 Inches Rock Drilling Down The Hole Hammer DHD360 QL60 Mission60 Cop66

Price Negotiable
Price: Negotiable
MOQ: 1 pc
Delivery Time: 3-4 weeks
Brand: SOLLROC
Product Description



6 inch Rock drilling dth hammer DHD360 QL60 Mission60 Cop66

Features:

1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption.
2. Smooth performance and long service life of SOLLROC DTH hammer due to high quality alloy steel materials and advanced producing technology.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Available for international standard thread and brand shank

Products specifications:

High Air Pressure DTH Hammer  Technical Data

DHD/COP series DTH HAMMERS
DTH hammer type DHD35 DHD340 DHD350 DHD360 DHD380 DHD1120
Bit shank IR3.5 COP44 DHD340 COP54 DHD350R COP64 DHD360 COP84 DHD380 DHD1120
Hole range(mm) Φ90-115 Φ110-135 Φ135-155 Φ155-203 Φ195-254 Φ305-445
Connection thread API 2 3/8” Reg. API 2 3/8"Reg API 2 3/8"Reg API 3 1/2"Reg API 4 1/2"Reg API 6 5/8"Reg
    API 3 1/2"Reg
Working pressure 1.0-1.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa
QL series DTH HAMMERS
DTH hammer type QL40 QL50 QL60 QL80
Bit shank QL40 QL50 QL60 QL80
Hole range(mm) Φ110-135 Φ135-155 Φ155-203 Φ195-254
Connection thread API 2 3/8"Reg API 2 3/8"Reg API 3 1/2"Reg API 4 1/2"Reg
  API 3 1/2"Reg
Working pressure 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa
SD series DTH HAMMERS
DTH hammer type SD4 SD5 SD6 SD8 SD10 SD12
Bit shank SD4 SD5 SD6 SD8 SD10 SD12
Hole range(mm) Φ110-135 Φ135-155 Φ155-203 Φ195-254 Φ254-311 Φ305-445
Connection thread API 2 3/8"Reg API 2 3/8"Reg API 3 1/2"Reg API 4 1/2"Reg API 6 5/8"Reg API 6 5/8"Reg
  API 3 1/2"Reg
Working pressure 1.5-2.0Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa
MISSION series DTH HAMMERS
DTH hammer type MISSION4 MISSION5 MISSION6 MISSION8
Bit shank MISSION4 MISSION5 MISSION6 MISSION8
Hole range(mm) Φ110-135 Φ155-190 Φ155-203 Φ195-254
Connection thread API 2 3/8"Reg API 2 3/8"Reg API 2 7/8"Reg API 4 1/2"Reg
  API 3 1/2"Reg API 3 1/2"Reg
  API 2 7/8"Reg 2 7/8"IF
Working pressure 1.2-2.0Mpa 1.3-2.3Mpa 1.5-2.5Mpa 1.5-3.0Mpa
NUMA series DTH HAMMERS
DTH hammer type NUMA100 NUMA120 NUMA125
Bit shank NUMA100 NUMA120 NUMA125
Hole range(mm) Φ254-311 Φ305-445 Φ305-445
Connection thread API 6 5/8"Reg API 6 5/8"Reg API 6 5/8"Reg
Working pressure 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa



Low Air Pressure DTH Hammer Technical Data

DTH hammer type CIR76 CIR90 CIR110 CIR130 CIR150
Bit Shank: CIR76 CIR90 CIR110 CIR110/CIR130 CIR150
Top Sub Thread: F48x10PIN F48x10PIN API 23/8" RGE BOX API 23/8" RGE BOX F70x10PIN
Bit Diameter: 76(mm) 90-120(mm) 110-150(mm) 130-175(mm) 150-200(mm)
Working Pressure: 4-10(bar) 5-10(bar) 5-10(bar) 5-10(bar) 5-10(bar)

The information you may like to know before order:

Quality warranty:
Our hammers are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.


Production time:
3-4 weeks after received the payment in advance.




About us:
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Changsha, Hunan, China.
We have rich experience in this field of DTH hammers and bits for 20 years.
Owing to high quality, professional serivce and competitive price, we have gotton good reputation from our customer all over the world, such as Canada, France, Spain, Italy, South Africa, Australia, Iran, Malaysia, etc.

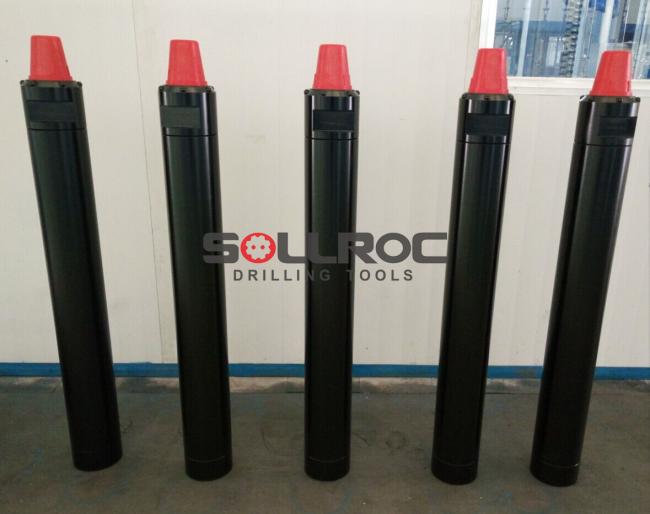

Products photoes
