3 1/2 inch 90mm Stepped Blade Drag Drill Bit for Water Well Exploration Drilling

Product description

Drag Bits are the perfect solutions for soil, sand, sticky clay, and grouting drilling. They are designed for higher penetration rates in softer unconsolidated formations, provide lower costs per foot. Drag Bits are more aggressive than tricone bits, and have higher speed while lower cutting action.

The Drag Bits can penetrate softer formations such as stiff clays and mudstones very quickly. Usually used for construction or other site investigation projects. It has two types, Step Type and Chevron Type.

Generally, available with following sizes:

Features

1, All drag bits blades originate from high quality of heat treated alloy steel forgings.;
2, Carbide inserts are individually brazed using 50% nickel silver alloy;
3, All drag bits are built to the gauge tolerances, use high grade carbide inserts only;
4, Powerful technology support and mature manufacturing experience;

5. Strict quality control before deliverying;

Application

The drag bit is designed for use in soft formations such as sand, clay, or some soft rock.Step type bits are the most common type of drag bit used widely for soft to medium formations. Step-type drag bits are very effective in drilling soft and unconsolidated material. They are available in a full range of sizes from 3" to 17 1/2".The design of step-type drag bits provides for fast drilling penetration and requires only moderate drilling weight for proper operation. A large center flushing hole is incorporated into our design for efficient removal of cuttings.

Chevron-type drag bits are recommended for drilling in slightly harder and more consolidated materials. Best suited for abrasive conditions, Chevron-type drag bits are also available in a full range of sizes from 3" up to 17 1/2".The clean design, use of premium tungsten carbide and rugged construction of these fine drilling tools ensures effective performance in a variety of ground conditions.

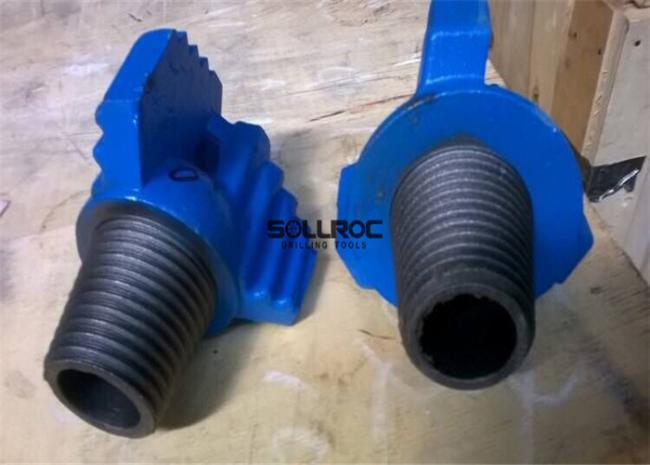

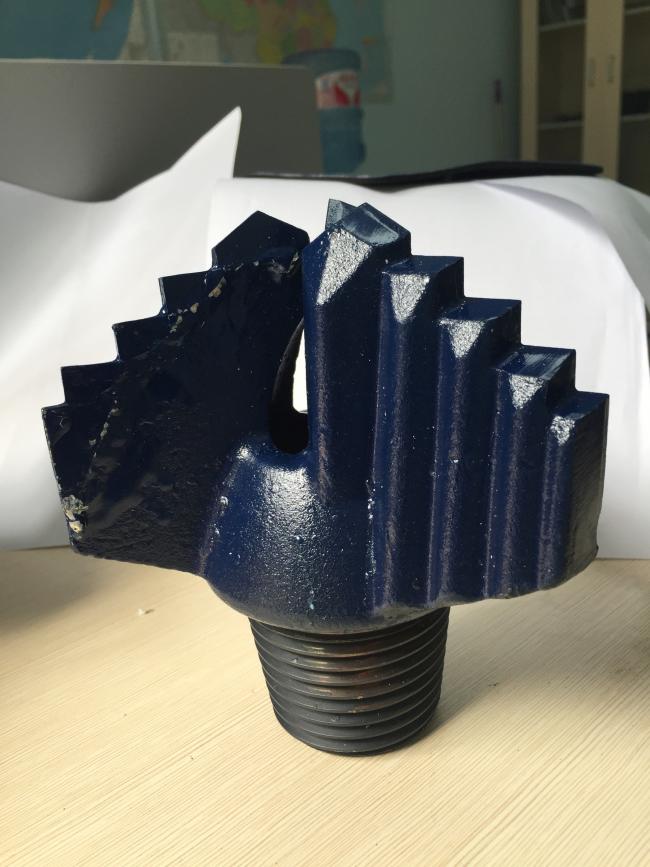

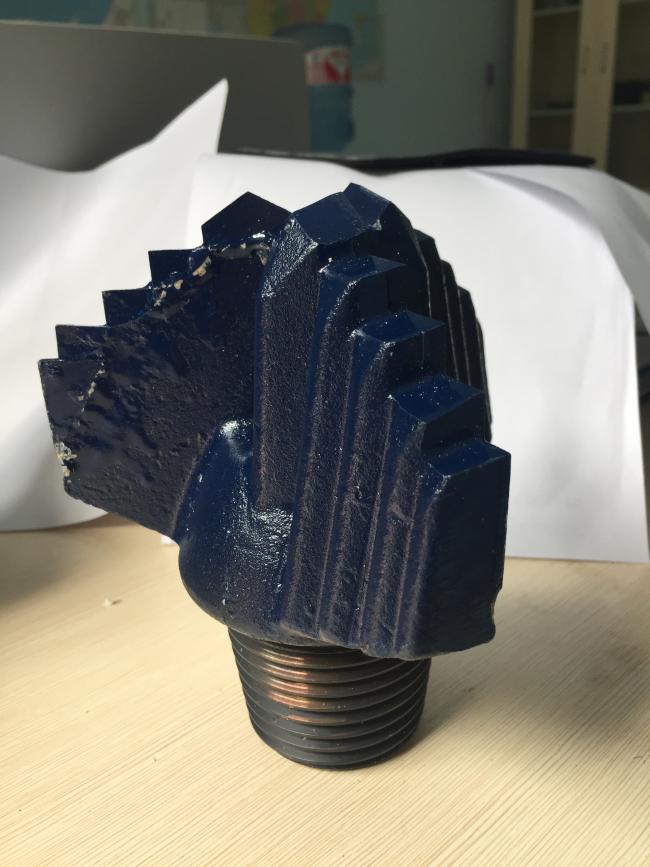

Detailed pictures

Packaging and shipping

Packaging: Carton+plywood case, or as request.

Shipping: By air, by sea, by express, as request.
