T45 89mm Button Bits 12 Buttons Top Hammer Drilling Tools For Rock Drilling
T45 89mm Button Bits 12 Buttons Top Hammer Drilling Tools For Rock Drilling
Sollroc rock drilling thread button bits are widely used in all kinds of mining, drilling, quarrying, engineering, construction, water well drilling, oil exploring industries etc.
Our thread button bits are made with high quality of best quality alloy steel bar and tungsten carbides with superior wear resistance and impact toughness superior, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Features:
- Thread connection: R25, R28, R32, R38, T38, T45, T51, ST58, GT60 and ST68.
- Carbide profile: Spherical, ballistic and parabolic.
- Bit Faces: flat, concave, convex and drop-center, uniface.
- Bits Diameters: 33mm-127mm
- Bit body: standard and retrac
| Thread Button Bit | Diameter | Carbide size(mm) | Flushing hole | Weight | |||
| mm | in | Front | Gauge | Front | Side | (kg) | |
| Qty×size | Qty×size | ||||||
| T45 (1 3/4") | 70 | 2 3/4 | 4×10 | 8×10 | 2 | 1 | 2.24 |
| 76 | 3 | 4×11 | 8×12 | 2 | 1 | 2.46 | |
| 89 | 3 1/2 | 6×12 | 8×14 | 2 | 2 | 3.52 | |
| 102 | 4 | 7×12 | 8×14 | 2 | 2 | 4.46 | |
| 115 | 4 1/2 | 8×12 | 8×14 | 2 | 2 | 6.68 | |

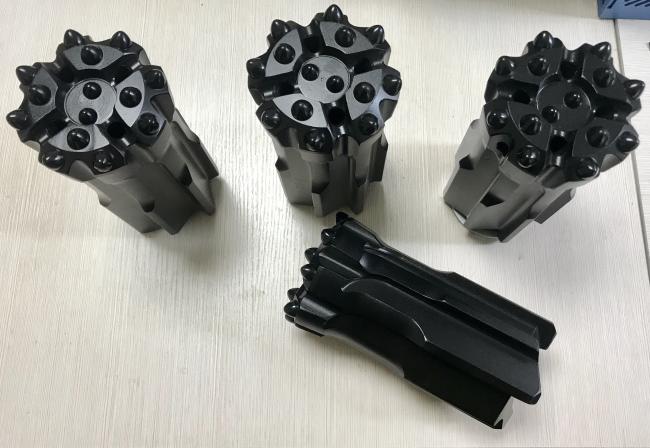

Products Photos:
Quality warranty:
Our hammers & Bits are made of high quality steel and all spares are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for exporting to protect products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally, Production time is 15 -25 days.
Transportation:
By air, By Express or By sea according to your requests.
