6 Inch QL60 DTH Down The Hole Hammer For Quarrying , Water Well Drilling Hammer

Price Negotiable
Price: 1000
MOQ: 1
Delivery Time: 22-28 working days
Brand: SOLLROC
Product Description





Product description




Product introduction:

Sollroc manufactures the finest and most efficient Down-the-Hole (DTH) hammers and bits for the quarrying,mining, construction and water well industries. Drill and blast engineers and water well contractors trust Sollroc’s DTH equipment because of the precision engineering and high standards of drilling efficiency built into each of our hammers and bits.


SD5 DTH hammer overview
shank QL60
Length(less bit) 1212mm
External diameter 148mm
Top sub thread API 3 1/2”REG
Weight(less bit) 95kg
Hole range 155mm-190mm
Working pressure 1.0-2. 5Mpa
Impact rate at 1.4Mpa 23Hz
Recommended rotation speed 20-30r/min
Air consumption 1.0Mpa 10m³/min
Air consumption 1.8Mpa 20m³/min
Air consumption 2.4Mpa 28.5m³/min


















Product features

1.Durable
The alloy steel is very strong and has long service life.

2.easy operation
Strong torque, head design rich for different geological needs.

3.Well made
Standard of work size. Reduce wear and tear to screws and extend service life.

4.Complete specifications
Different sizes and sizes. Meet the needs of different airlines.



Application

The principal drilling methods used in mines today are mechanical ones in which a drill drives cutting tools into rock by means of static or dynamic force. Percussion rock drills are the most commonly used equipment for drilling in small-scale surface or underground mining situations, whereas rotary crushing drills or down the hole drills (DTHs) are generally employed for mining in large-scale surface mines.

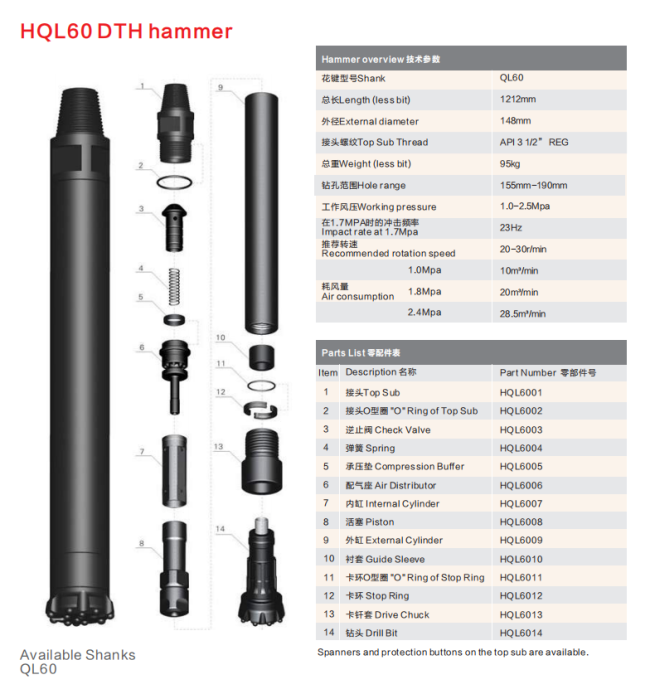

Structure picture

Company information

Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.



Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
