Alloy Steel 3'' M30 Mission30 Down The Hole Hammer
High Quality Alloy Steel Materials 3'' M30 Mission30 DTH Hammer For Efficient Drilling
Technical parameter M30 DTH hammer:
| shank | M30 |
| Length(less bit) | 955mm |
| External diameter | 82mm |
| Top sub thread | API 2 3/8”REG |
| Weight(less bit) | 23.2kg |
| Hole range | 90mm-110mm |
| Working pressure | 7-25bar |
| Impact rate at 17bar | 32Hz |
| Recommended rotation speed | 30-70rpm |
Product introduction:
A down-the-hole drill, usually called DTH by most professionals, is basically a mini jackhammer screwed on the bottom of a drill string. The fast hammer action breaks hard rock into small flakes and dust and is blown clear by the air exhaust from the DTH hammer. The DTH hammer is one of the fastest ways to drill hard rock. Now smaller portable drilling rigs with DTH hammers can drill as fast as much larger truck rigs with this newer technology.
Product advantages:
Application:
DTH Hammer is one of key components for drilling equipment. They are powered by compressed air medium and supply continuous impact for bottom rocks with down-the-hole bit. They are widely used in ore drilling, surface mining,water well drilling, Geothermal drilling, foundation drilling and oil drilling.
Sollroc is a high-tech enterprise with a one-stop complete system of designing,maufacturing,trading and after-sale service in Changsha,Hunan Province of China.We specialize in manufacturing the complete range of DTH hammers and bits,overburden casing systems,reverse circulation hammers and bits,drill pipes,top hammer drilling tools.We promise to provide complete DTH drilling solutions to our customers with first class products,outstanding credit and best service.

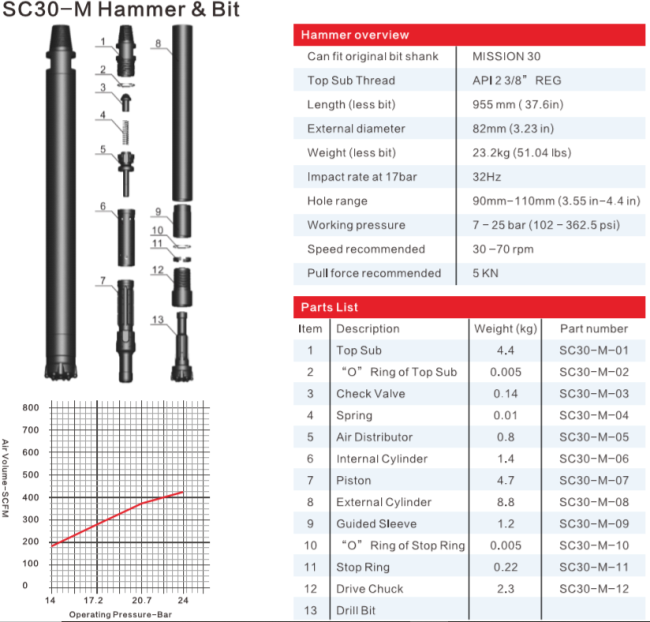

Detailed photo:
