17 Bar COP54 DTH Hammer For Water Well Drilling
17Bar Cop54 DTH Hammer 5'' Hammer For Water Well Drilling & Mining
Product introduction:
Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.

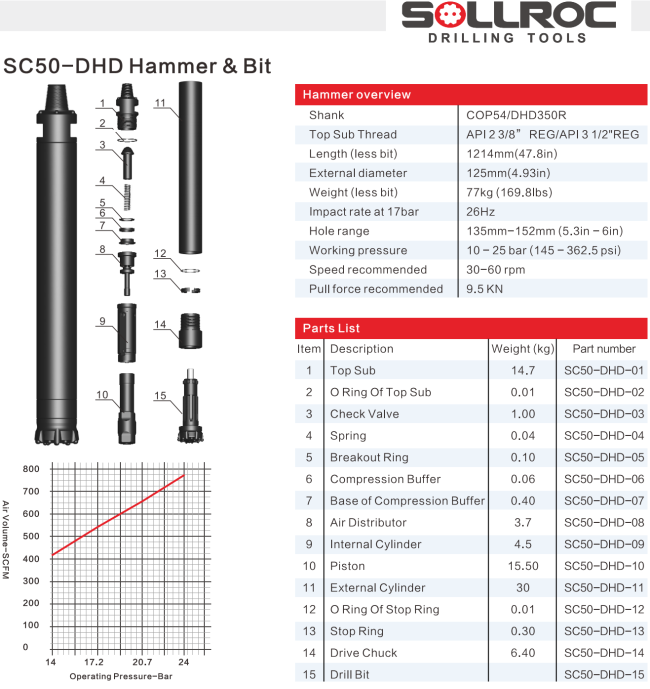

Cop54 DTH hammer overview:
| shank | Cop54 |
| Length(less bit) | 1214mm |
| External diameter | 125mm |
| Top sub thread | API 2 3/8”REG API 3 1/2'' REG |
| Weight(less bit) | 77kg |
| Hole range | 135mm-152mm |
| Working pressure | 1.0-2. 5Mpa(145-362.5psi) |
| Impact rate at 1.7Mpa | 26Hz |
| Recommended rotation speed | 30-60rpm |
Product advantages:
Application:
It is widely used in open pit mining, tunneling, quarrying, transportation construction,engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc.
Sollroc is the professional DTH drill bits supplier! After many years experience we provide the worldwide customers ideal DTH drill bits. Optimized designs improve the drilling efficiency. And automatic production line ensure the quality stability of product. Strict requirements of heat-treatment guarantee durability of the bits.
Detailed photo:
