Outer Diameter 125mm SD5 DTH Hammer For Water Well Drilling
Outer Diameter 125mm Special Steel DTH Hammer SD5 For Water Well Drilling
Product introduction:
| shank | SD5 |
| Length(less bit) | 1175mm(46.26in) |
| External diameter | 125mm(4.92in) |
| Top sub thread | API 2 3/8”REG API 3 1/2'' REG |
| Weight(less bit) | 72.5kg(159.83lbs) |
| Hole range | 135mm-152mm |
| Working pressure | 1.0-2. 5Mpa(145-362.5psi) |
| Impact rate at 1.7Mpa | 26Hz |
| Recommended rotation speed | 30-60rpm |
Product advantages:
1.Using the latest rock drilling theory,optimizing the inside structure and the size of the air distrbution,to make the DTH hammer obtain the optimal energy transfer and make it achieve faster drilling speed and lower air consumption.
2.Trouble Free and Easy Service with no special assembly or disassembly tools required.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
Application:
It is widely used in open pit mining, tunneling, quarrying, transportation construction,engineering, earth-rock excavation, water wells, pile foundation, and civil engineering project etc.
Sollroc is the professional DTH drill bits supplier! After many years experience we provide the worldwide customers ideal DTH drill bits. Optimized designs improve the drilling efficiency. And automatic production line ensure the quality stability of product. Strict requirements of heat-treatment guarantee durability of the bits.

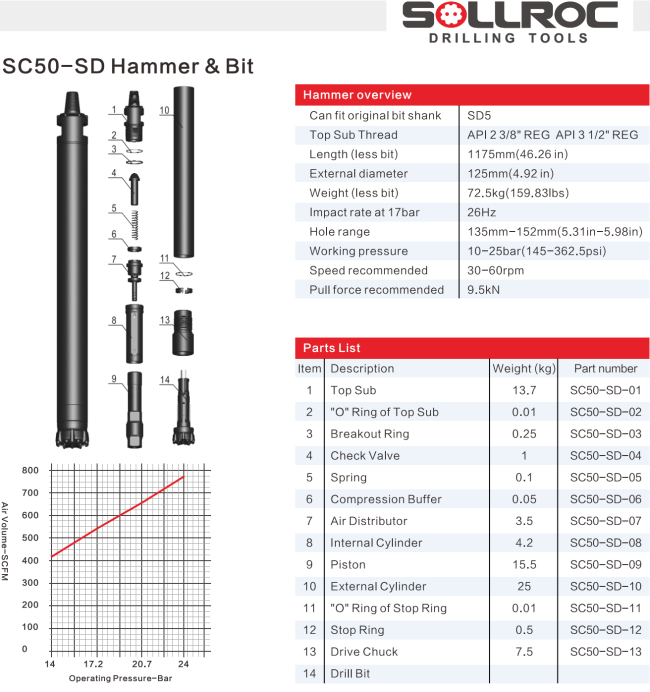

Detailed photo:
