Carbonated Drink Beverage Can Filling Machine PLC Control For Aluminium Cans
Carbonated Soft Drink Canning Machine, Beer Canning Machine
For Aluminium Cans
there are two kinds of carbonated drink canning machine: rotary and liner, here is liner one.
made of tinplate, aluminum alloy or PET plastic.
3. It has such function as automatic lift, automatic turnover, filling and sealing for heaps of empty
cans,it is very large.
4. It is the best production facility for producing Beer, soft drink, soda water or other carbonated
soft drink.
---Application
1. The machine is mainly used to washer the cans, fill the gas liquid like beer, soft drink, soda
water.sparkling water and so on to tin cans, then seal the cans for market selling.
2. This can filling line is suitable same can diameter but different can height.With different can
diameter, the filling line should be set with extra can change parts to share one filling line.
---Product Pictures&Technical parameter

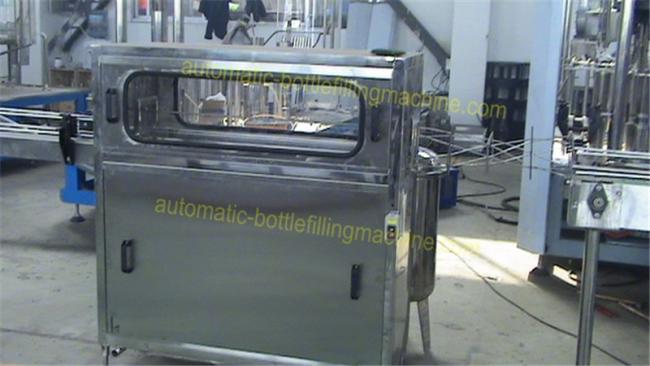

rising
- Production capacity: 2000 cans per hour
- Bottle/can type:ф40-80
- Power:0.55kw
- dimension:1200*500*1200mm
- Weight:100kg
- Voltage:380V/50HZ(can be adjustable)
filling
| Filling heads | 12 |
| Suitable of bottle | PET/glass bottle, Aluminum can |
| Productivity(500ML) | 1000-2500B/H |
| Filling pressure | 3MPA |
| Voltage | 380V 50Hz |
| Power of motor | 0.75KW(Regulated speed motor) |
| Overall dimension | 1100×1050×1800MM |
| Weight | 500KG |

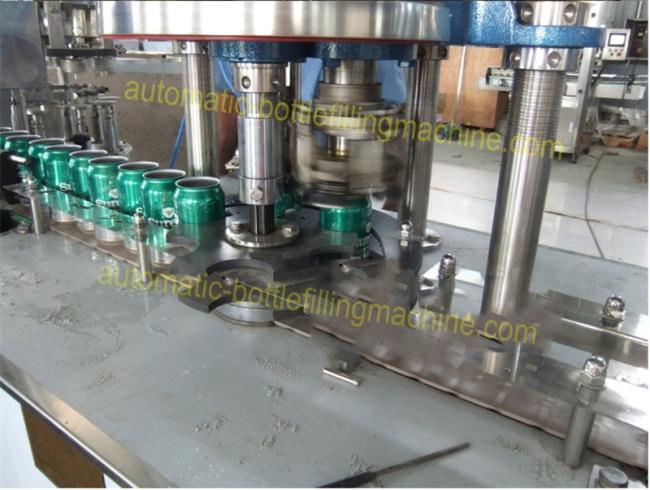

sealing
- Model: FBX-1
- Production capacity: 2000 cans per hour
- can type:ф40-80mm
- can Height:50-340
- Power:0.75kw
- dimension:900*700*1800mm
- Weight:350kg
- Voltage:380V/50HZ(can be adjustable)
