Fruit Juice Glass Bottle Filling Machine 500ML 1.5L Normal Pressure Filling
250ml 500ml 1.5L Fruit Juice Glass Bottle Filling And Package
Machine For Sale
product description
this glass bottle beverage machine is for non-carbonated drink filling, like water,
juice,coffee and milk beverage, etc. It integrates rising filling capping 3 functions in
one unit. this machine has 8 rising heads, 8 filling heads and 3 capping heads, can
filling 2000 bottles per hour.
technical parameter
| model | BCGF8-8-3 |
| Suitble bottle | Glass bottle |
| Filling material | Water, juice, tea, milk |
| Fillingi type | Normal pressure filling |
| Rising/filling/capping heads number | 8/8/3 |
| capacity | 3000B/H(for 500ml) |
| voltage | 380V 50Hz or customized |
| Material | SUS304 |
| Dimension | 1900*1500*2200mm |
| weight | 2000kg |
component construction
1. bottle inlet conveyor
2. bottle outlet conveyor
3. cap loader
4. rising
5. filling
6. capping
product pictures

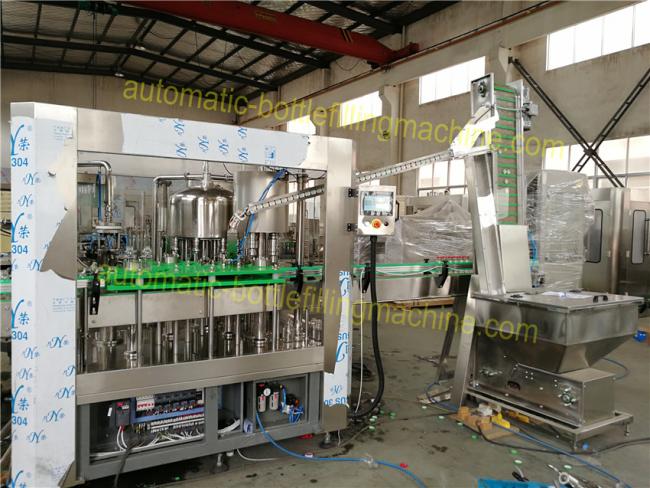

overall look

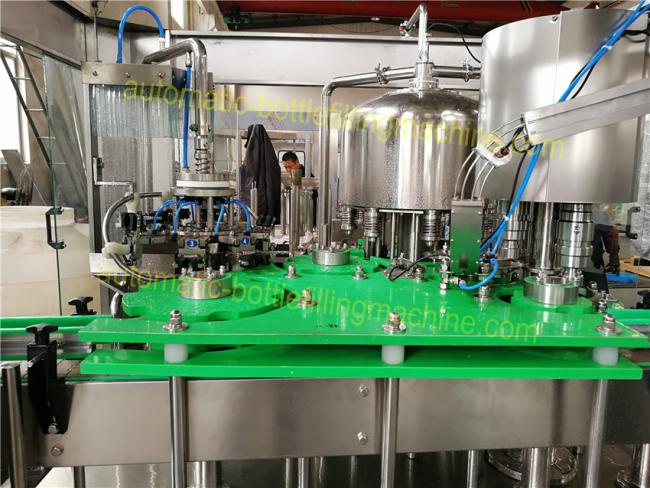

inner look

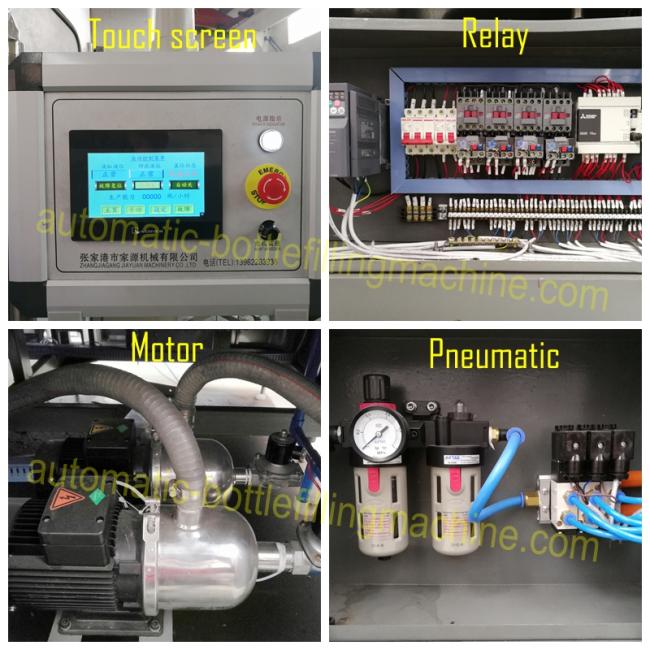

eletrical system
Beside this BCGF8-8-3, we also have other capacity
| Model | BCGF16-12-6 | BCGF18-18-6 | BCGF24-24-8 | BCGF32-32-10 | BCGF40-40-12 | BCGF50-50-15 |
| Number of rising heads | 16 | 18 | 24 | 32 | 40 | 50 |
| Number of filling heads | 12 | 18 | 24 | 32 | 40 | 50 |
| Number of capping heads | 6 | 6 | 8 | 10 | 12 | 15 |
| Bottle standard(mm) |
Diameter:Φ50-Φ108 Height:150-320 |
|||||
| Rated production capacity(500ml) | 4000BPH | 6000BPH | 10000BPH | 12000BPH | 16000BPH | 24000BPH |
| Installed capacity(KW) | 3.8 | 4.3 | 6.5 | 8.7 | 9.5 | 12 |
