5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment
5.88kw Small Plant Automatic Glass Bottle Water Filling Screw
Capping Machine
Specifications:
Model:CGF8-8-3 ; Capacity:3000bottleds per hour
1. It is used to produce polyester bottled mineral water, purified water, alcohol, tea drink and other non-
gas beverage.
2. It can finish all the process such as bottle rinsing, filling and sealing fast and stable in one unit.
3. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production
capacity and economic efficiency.
Feature
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled
screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, anna com bottle-shaped transform not need to
adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with
the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor
chains.
6. Super-low star wheel structure can highly improve the strength of the whole machine.
7. Central greasing oil system can grease all bearings easily.
8. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife.
You can also adjust the capping rounds according to different caps by adjusting gears below.
9. Host adopt advanced PLC automatic control technology, the key electrical components from famous
company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.
Technique parameter
| Model | CGF8-8-3 |
| Rinsing Head | 8 |
| Filling Head | 8 |
| Capping Head | 3 |
| Bottle Volume | 350ml~2000ml±10ml |
| Bottle Diameter | φ50-92mm |
| Bottle Height | 150-310 mm |
| Filling Tolerance | ±2% |
| Cap Size | 28mm and 30mm PE Standard Caps |
| Air Pressure | 0.6MPa |
| Air Consumption | 500 L/min |
| Gas Consumption | 0.4 m3/min |
| Motor Power | 9.18kW |
| Voltage | 380V |
Inside look

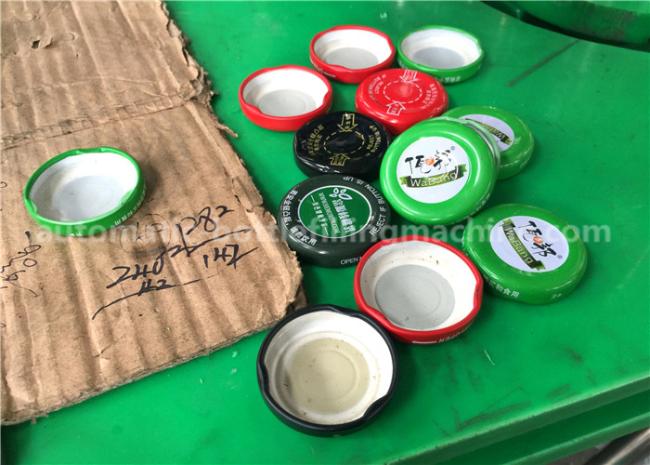

Screw cap
Conveyor system
