Electric Driven End Of Line Packaging Equipment 150B/Min PVC Lable Sleeve Machinery
Electric Driven Automatic Bottle PVC Lable Sleeve Machinery /
Equipment
Product Introduction
All-cover type stainless steel host machine: the whole machine is waterproof as well as rustless.
Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: a more stable for label delivery.
Synchronous bottle divider: a more stable transmission for bottle.
Bottom set of label brush:a more precision for casting label.
Label-controlling electric-eye shelf:unique combination of tail and electric-eye to improve the precision for
cutting off The membrane materials.
Push-button control cabinet: a more humanized operation.
Independent feeding material shelf: the position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller,imported servo motor,servo driver,frequency converter and
transducer; besides,it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types:
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curved bottle and cup-
shaped, etc.
Technical parameter
| Techniacal Parameter | |||
| No | Item | Technical data | Unit Symbols |
| 1 | Import Power | 3.0KW | KW |
| 2 | Import Voltage | ∮3, 380/220 VAC | |
| 3 | Capacity(production speed) | 150 | bottles per min |
| 4 | Dimension of Host Machine (mm) | L2100 × W850 × H2000 | mm |
| 5 | Applicable Diameter Container (mm) | φ28 ~ φ120 | mm |
| 6 | Applicable Label Length (mm) | 30~250 | mm |
| 7 | Applicable Thickness Label (mm) | 0.03~0.13 | mm |
| 8 | Applicable Inner Diameter of Paper Tube | 5''~10'' | |

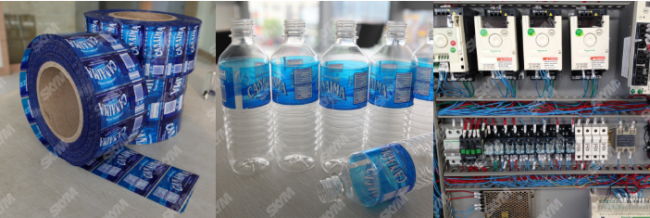

product pictures
