Small 2000BPH Turnkey Auto Water Bottle Filling Machine , Mineral Water Bottling Plant
Small 2000BPH Turnkey Automatic Mineral Water Filling Bottling Machine

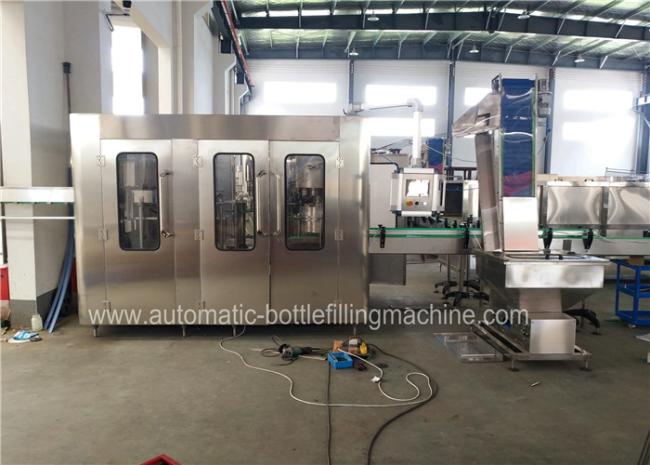

This Automatic 3-in-1 Wash-filling-capping Water Filling Machine is used to produce bottled mineral water, purified water, flavored water, alcoholic beverage and other non-gas Liquid. This Machine can be applied to all kinds of plastic products such as PET, PE. Bottles size varies from 250ml-2500ml meanwhile few changeover is needed. This series of filling machine capacity varies from 2000BPH to 30000BPH.
| model | CGF8-8-3 | CGF16-12-6 | CGF18-18-6 | CGF24-24-6 | CGF32-32-8 | CGF40-40-10 |
| capacity(BPH) | 3000 | 4000 | 6000 | 10000 | 14000 | 18000 |
| washing heads | 8 | 14 | 16 | 24 | 32 | 40 |
| filling heads | 8 | 12 | 16 | 24 | 32 | 40 |
| capping heads | 3 | 5 | 5 | 6 | 8 | 10 |
| suitable bottle | PET bottleplastic bottle | |||||
| diameter of bottle | 55-100mm | |||||
| height of bottle | 150-300mm | |||||
| suitable cap | plastic screw cap | |||||
| weight(kg) | 1500 | 2000 | 4000 | 4500 | 6000 | 7800 |
| main motor power(kw) | 1.2 | 1.5 | 3 | 3 | 3 | 5.5 |
Main features of the equipments:

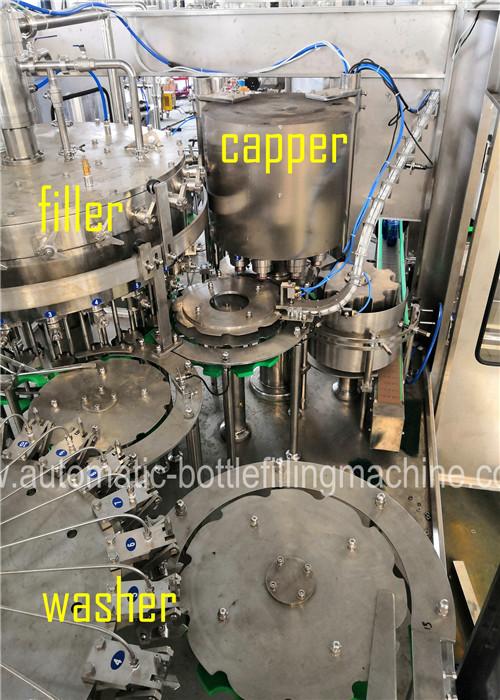

1.Using the wind sent access, with clamp hanging the bottle neck ; which can keep the bottle shape and high-speed.
2.Washing bottle mouth with special designed washing manipulator,clip in the bottle neck, stable and avoid secondary pollution.
3.Filling uses lifting valve, adopts micro pressure filling principle to ensure correct filling. 4Capping adopts
French advanced technology, cap sorter install in a lower position, send cap in level position.
Our capacity 2000BPH to 30000BPH, which one is fine with you?
