Automated Glass Bottle Filling Machine , Juice Making Plant , Monoblock Filler And Capper
Description:
This machine is used to produce glass bottle various juice, which combines ringsing, juice filling, pulp filling and capping four stations in one unit.
Specially the seperate pulp station guarantees the machine can fill big pulp.
Techinial parameter:
| Model | BRCGF8-8-1-3 |
| Rated capacity |
300-500ML:3000B/H; 1000ML:1500B/H |
| Speed | adjustable |
| Filling Liquid | Juice with big pulp |
| Filling Container Type |
glass bottle: Max Diameter 108mm, Max Height 310mm |
| Filling Type | Gravity filling |
| Cap | twist-off cap, screw cap, ring-off cap, crown cap |
| Filling Temperature | ambient Temperature |
| Label Material | Adhesive Label; OPP Label |
| Conveyor Mode |
Conveyor Belt |
| Factory Condition |
Temperature:10~40℃ Humidity:no dew(≤95%) |
| Resource Voltage | According Customer ' s Factory Voltage Design. |
| Efficiency | > 9 5 % |
| Control | PLC+HMI |
| Voltage | 380V 50HZ 3Phases or customized |
Machine picture
washing:
1. The washing part is mainly composed of water distributor, bottle clamp, up turnplate, guide rail, protection cover, spraying device, defrosting tray.
2. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

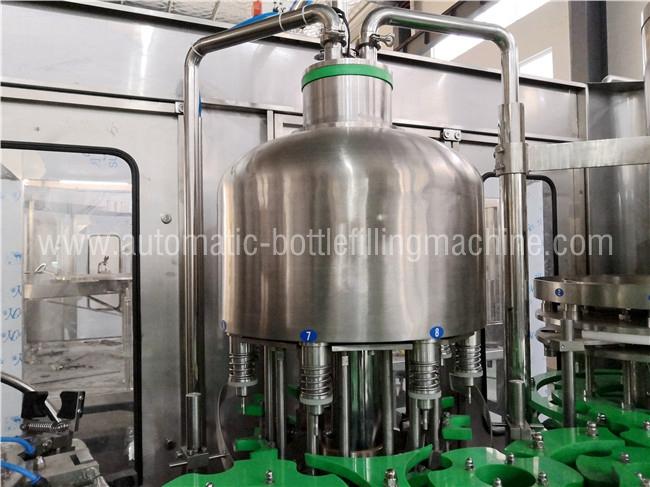

juice filling
1. Filling device is mainly composed of filling barrel, filling valve, guide rail, elevating device, elevating device, etc.
2.Gravity filling method
3.Filler is driven through gears inside the machine frame.
Pulp filling:
We have rich experience in glass bottle juice package machine, can provide complete line plants, capacity starts from 1000 bottles per hour to 30000BPH, also can customize the equipment according to your request, please contact... ...
