330ml Aluminum Can Carbonated Soda Water Making Machine
330ml Aluminum Can Cola Filler Sealer Machine , Carbonated Soda Water Canning Line
Technical parameter
| Model | DGF18-4 |
| Capacity (can/Hour) | 6000 |
| Suitable can size ( ml ) |
150ml-500ml φ53-φ72.9mm height 65-190mm |
| Can size | 200/202/206/209 |
| Heads of filling | 18 |
| Heads of sealing | 4 |
| Filling way | whole machine bottom lifting up, and normal pressure filling |
| Filling temperature(℃ ) | 65℃ -95℃ Normal temp or 65-95° C |
| Power source specification | AC380V/50HZ |
| Power (kw) | 3 |
| Overall dimension(mm) | 2500x2000x2350 |
| Weight(kg) | 3800 |
Filling part
1) Adopted Germany tech anti-corrosion non-maintaining bearing that can reduce the pollution of filling to the environment.
2) The pressure mechanical valve is introduced the advanced foreign design with a fast filling speed, no hygiene corner pocket, a few sealing parts, and precise liquid level control. The whole valve is made of 304 stainless steel.
3) The filling system can connect a CIP circulation system to wash the pipeline .This system can clean the liquid pipe, liquid tank and filling valve etc. effectively.

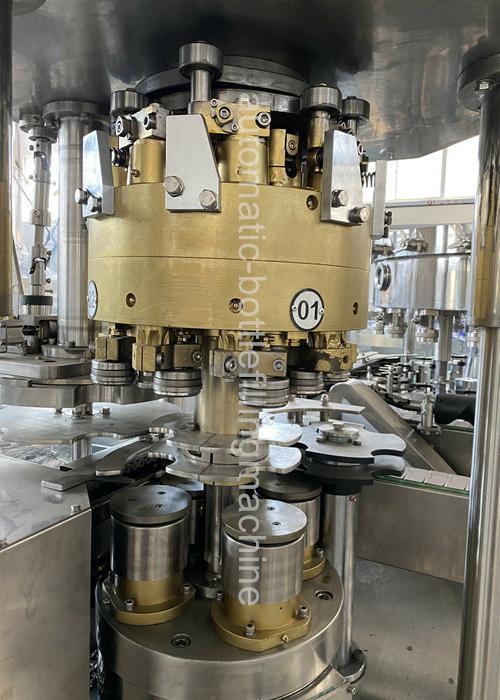

Seaming part
1, Ingenious lid loading device to make sure no can, no lid loading, no sealing;
2, Energy saving model, one motor can process all actions;
3, Full sealing effect make sure to be suitable for liquid packing can;
4, The machine suitable for all kinds of cans with same diameter, height can be adjusted easily;
5, Twice sealing tech to make well sealing effect, no leakage;
