PLC 600BPH 5 Gallon Water Filling Machine With Washer Sealer
600BPH 5 Gallon Bottle Washing Machine , 20 Ltr Water Jar Filling Machine 2000kg
Introduction
QGF series 5 gallon filling machine has the following types:80 type,150type,300 type,450 type,600 type,900 type.It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer,washing solution can be used circularly.The sealer can seal barrel caps are aseptic and healthy,this line can also automatically carry out washing,sterilizing,filling,capping, counting and products discharging.It is a new kind of barreled water auto-producing line,which integrates mechanism, electricity and pneumatic technologies together.
Process:
Water treatment system → Bottle blowing machine → Automatic decapper → External and Inner brusher → Rotary type barrel washing filling capping machine → Cap elevator →Light checker→ Heat shrinker
Technical parameter
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
| Filling heads | 1 | 2 | 3 | 4 |
| Volume | 18.9 | 18.9 | 18.9 | 18.9 |
| Barrel size | 270*490 | 270*490 | 270*490 | 270*490 |
| Capacity | 150 | 300 | 450 | 600 |
| Gas pressure | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 | 0.4 -0.6 |
| Gas consumption | 0.37 | 0.6 | 0.8 | 1 |
| Motor power | 1.75 | 3.8 | 3.8 | 7.5 |
| Motor voltage | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Weight | 700 | 1200 | 1600 | 2000 |
| Dimension | 2800*1100*1600 | 3800*1300*1600 | 4200*1600*1600 | 4800*1800*1600 |

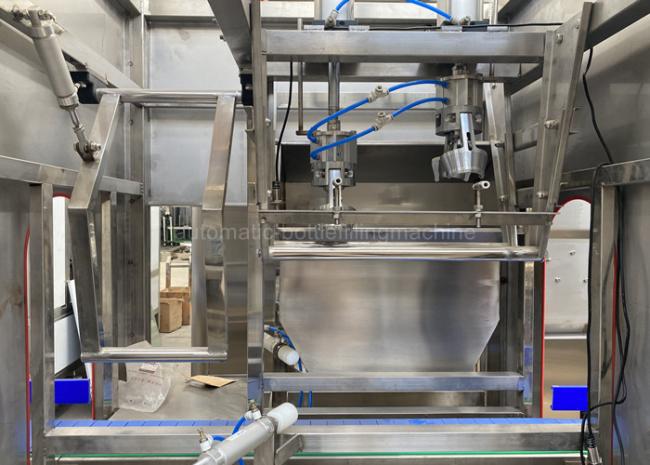

Automatic cap decapper

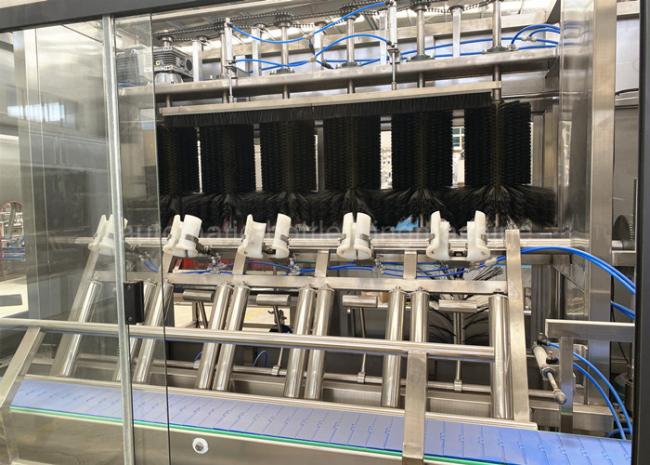

Automatic outside-inside washer
Gallon filling machine features:
1. The centralized lubrication system, more convenient and simple for maintenance.
2. Automatic cover unscrambler and cap load system, set of fault protection device.
3. The whole machine has compact structure, high and stable work efficiency, correct and sensitive motion, high degree of automation, which is a washing-filling-capping 3-in-1 equipment.
4. 4 times rinsing, to make sure the barrel inside is very clean.
5. Automatic filling, control the filling situation well.
