HW-CMM Connectors, HW-321V072F46,MTL-55302F,2mm Pitch.
HW-CMM Connectoc, HW-321V072F46,MTL-55302F,2mm Pitch.
The CMM MICRO CONNECTOR interconnection system is a 2mm pitch connector (square matrix) witch proven high reliability under the most extreme environmental conditions:
- Flexible architecture: “Board to Board”, “Board to Wire”and “Wire to Wire”configuration
- Modular and hybrid design:mixed layout full option with Low Frequency - LF(over 5 Amp)-and High Frequency-
HF-(over 11 GHz)and High Power -HP-(over 30 Amp)
- High reliability contact design&High performance under harsh use conditions
- Secure:integral jacking mechanism or locking by spring latch
How to order.
|
Code with Low Frequency contacts only
|
Additional code for mixed-layout connector (HF/HP)
|
||||||
| Series | Gender | Termination | Number of LF CONTACT |
Fixing Hardware |
Number of HF/HP contacts pin 1 side (LF contact number 1)
|
Number of HF/HP contacts opposite to LF contact number 1
|
HF/HP Contact Type
|
      |
|||||||
| 34 | 1 male |
Refer to table on page 7
|
Refer to the series 320
|
Refer to pages 69 to 74
|
Depends upon the number of LF contacts HF / HP : 64 contacts max. Type of HF/HP contact : please refer to pages 10-11
|
HP/HF 22 please refer to pages 95 to 102
|
|
| 2 female | |||||||
|
CMM RANGE
|
USE
|
|||||||||||||
|
STRAIGHT ON PCB
|
90° ON PCB
|
STRAIGHT SMT
|
90° SMT
|
CRIMP
|
||||||||||
| 1000/200 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
||
|
Female
|
Y L=3,0 |
YL L=4,5 |
YC L=1,2 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
|||
|
220
|
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
||
|
Female
|
Y L=3,0 |
YL L=4,5 |
YC L=1,2 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
T L=2,25 |
T L=3,35 |
R L=0,9 |
C Gauge 22 |
S Gauge 24-28 |
|||
| 320 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||
|
Female
|
Y L=3,0 |
YL L=4,5 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||||
| 340 |
Male
|
Y L=3,0 |
YL L=4,5 |
YM L=5,1 |
YX L=9,1 |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||
|
Female
|
Y L=3,0 |
YL L=4,5 |
PF Press fit |
V L=3,0 |
VL L=4,5 |
C Gauge 22 |
S Gauge 24-28 |
|||||||

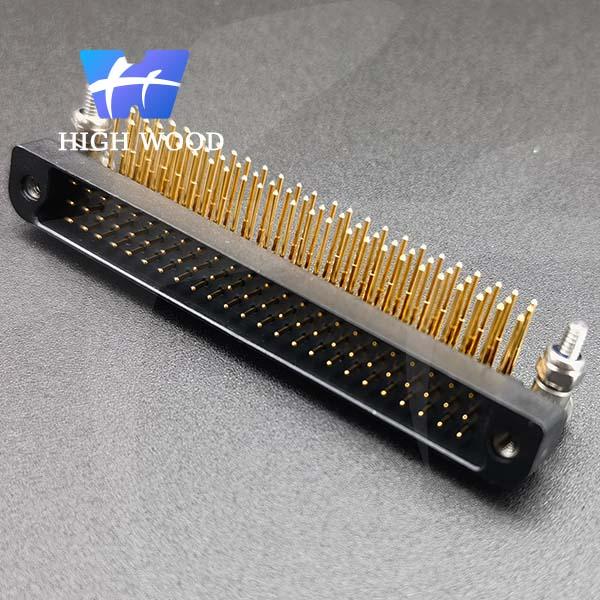

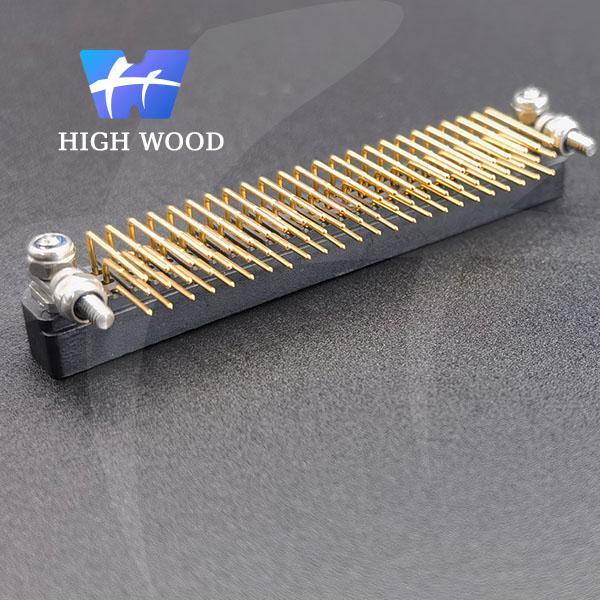

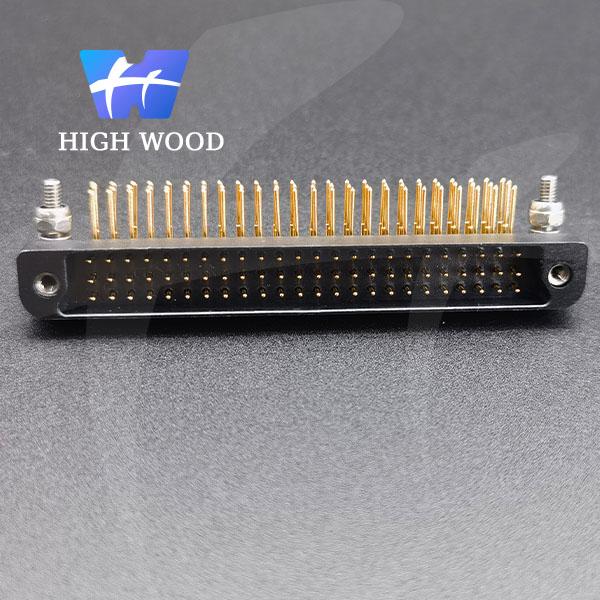

Product showing.
