MS26482 Connector, MS3476W08-33S, MIL-C-26482Ⅱ, MS26482 SeriesⅡ
Price:
10＄-150＄
MOQ:
100PCS
Delivery Time:
2-9weeks
Brand:
HIGH WOOD
Product Description
MS3476W08-33S,MIL-C-26482Ⅱ,MS26482 seriesⅡ
MIL-C-26482 series II connector is the upgrade to MIL-C-26482 Series I. They are designed
as bayonet coupling, rear-removable crimp contact, medium contact density, mating hermetic
and RFI shielding.
This family of circular connectors is offered 3 kinds of material shell, 9 kinds of size shell,
4 kinds of finish, 2 plug styles, 4 receptacle-mounting styles, 3 kinds of contact and more
than 30 kinds of contact layout.
Widely used on commercial, military and aerospace systems, etc.
How to order.
| MS | 3474 | W | 18 | -06 | P | N | ||||
| Basic series | ||||||||||
|
Type of shell |
||||||||||
|
Finish |
||||||||||
|
Shell size |
||||||||||
| Contact layout (see next page) | ||||||||||
|
Contact |
||||||||||
|
Orientation |
||||||||||

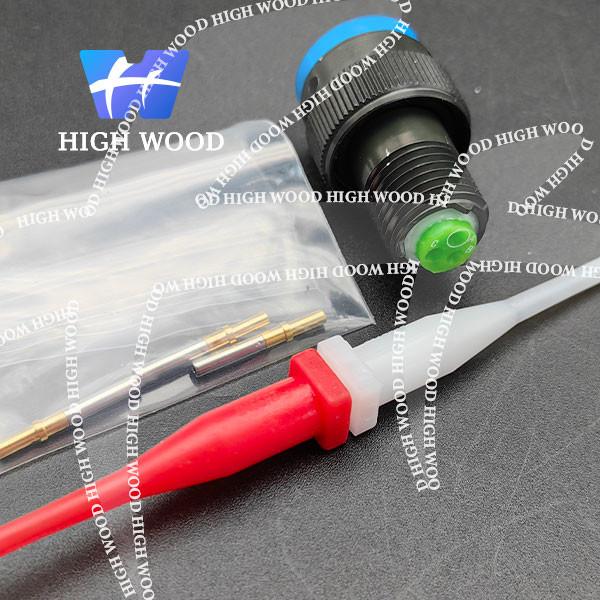

Product showing.
Shell size.
| Shell No. | D1 | D2 |
| 08 | 19.7 | 0.5000-20 |
| 10 | 23.5 | 0.6250-24 |
| 12 | 27.0 | 0.7500-20 |
| 14 | 30.5 | 0.8750-20 |
| 16 | 34.0 | 1.0000-20 |
| 18 | 35.3 | 1.0625-18 |
| 20 | 39.3 | 1.1875-18 |
| 22 | 43.0 | 1.3125-18 |
| 24 | 46.0 | 1.4375-18 |
Contact.
| Contact NO. | Diameter (mm) | Cross section area of cable (mm²) | Resistance (mΩ) | Current (A) |
|
20# |
Φ 1.00 |
0.20 |
≤ 5 |
3.0 |
| 0.30 | 5.0 | |||
| 0.50 | 7.5 | |||
|
16# |
Φ 1.59 |
0.50 |
≤ 3 |
7.5 |
| 0.80 | 10.0 | |||
| 1.25 | 13.0 | |||
|
12# |
Φ 2.39 |
2.00 |
≤ 2 |
17.0 |
| 3.15 | 23.0 |

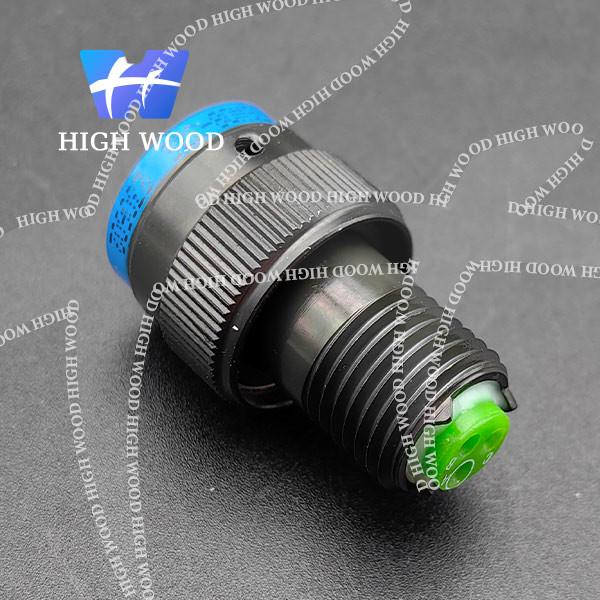

Straight plug (MS3475/MS3476)

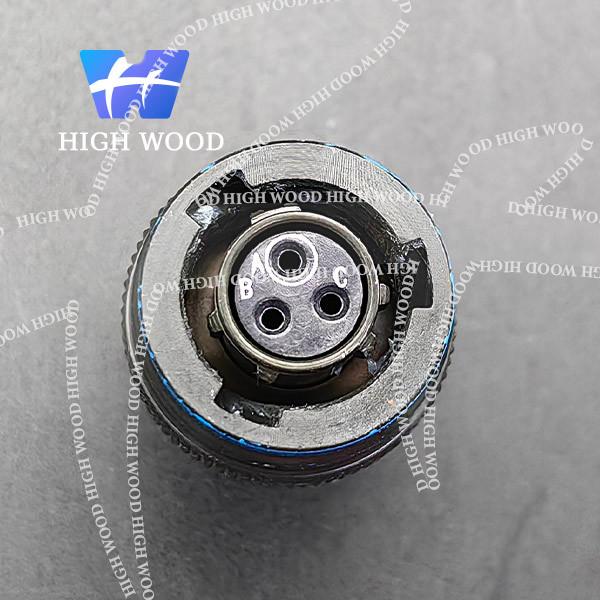

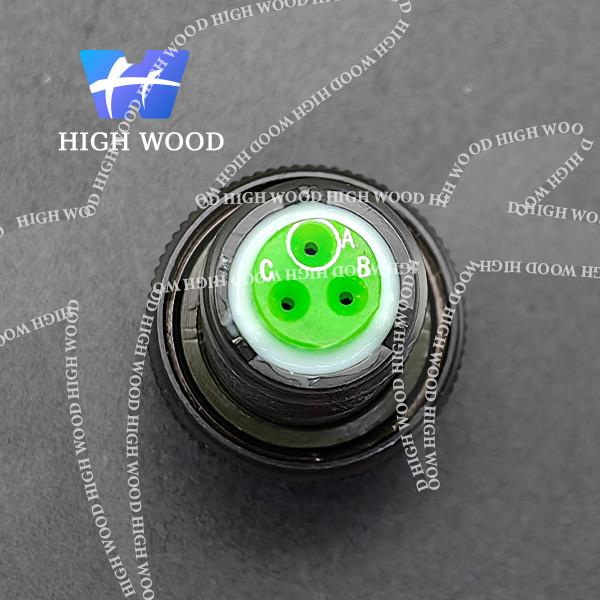

Contact layout
