HW-221YL30F24H
HW-221YL30F24H has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,NICOMATICs pecializes in the design,development and manufacture of electronic connectors.
How to order:
| 22 | 1 | Y | nn | Fxx | |
| 22 series | |||||
|
Code: 1——Socket 2——Plug |
|||||
|
Terminal mode of the contact parts: Y ——Vertical welding plate,pin3mm YL ——Vertical welding plate,pin4.5mm |
|||||
|
Number of LF contacts
|
|||||
|

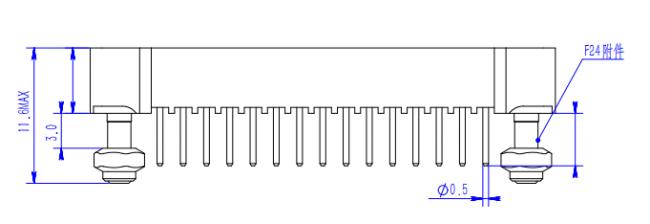

Attachment combination code: F22 ——Vertical welding plate,δ2,Round nut F22H ——Vertical welding plate,δ2,Hexagon nut F24 ——Vertical welding plate,δ4,Round nut F24H ——Vertical welding plate,δ4,Hexagon nut |
|||||
Product pictures:
Product Details:
| Material and coating | |
| Insulator | Glass fiber reinforced PPS,UL94-V0(Irradiation resistance, no moisture absorption, ozone resistance) |
| Contact |
LF contact: Copper alloy nickel bottom gold plating 0.75u |
| Accessory | Stainless steel |
| Electrical | |
| Withstand pressure (sea level) | 600V AC/DC |
| Insulation resistance | ≥1000MΩ |
| Contact |
Signal contacts: working current25 ℃,≤3A； working current 85℃,≤2.2A；contact resistance ≤10mΩ |
| Mechanical | |
| Endurance | 500cycles |
| Environmental | |
| Operating temperature | -60 ℃ - 260 ℃ |
