J1784A/38-17W

This type of attachment complies with the national military standard GJB1784 (equivalent to the US military standard MIL-C-85049).

Note: 1. The reference to "J1784" in the attachment model is equivalent to "J1784A" without distinction.

2. When using attachments, at least one of the following anti loosening measures should be taken:

① Thread the fuse through the safety hole to prevent loosening;

② Apply thread sealant to the tail thread of the product and tighten the connecting nut to prevent loosening;

③ Use a heat shrink tube to shrink the entire accessory to prevent loosening.

3. Accessories with set screws should be coated with thread sealant before tightening them.

4. If the product that the cable accessory is suitable for is equipped with contact 8, it is necessary to choose a longer cable accessory such as J1784/38H or J1784/18 to avoid interference between the contact locator and the cable accessory.

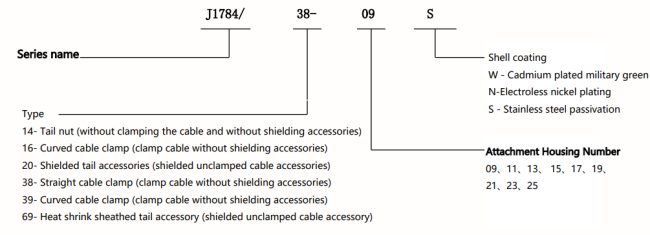

How to order:

Product pictures:

Example of model marking:

J1784/38-09S, series main name J1784, type 38- straight cable clamp (clamp cable unshielded accessory),

accessory housing number 09, shell plating is stainless steel passivation.

J1784/38 straight cable clamp (clamp cable unshielded accessory)
