HW-CMM Connectors , HW-M80-5400822 Micro-D Connector
Price:
10＄--150＄
MOQ:
100PCS
Delivery Time:
2--9 weeks
Brand:
HIGH WOOD
Product Description
HW-M80-5400822
HW-M80-5400822 has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications, pecializes in the design,development and manufacture of electronic connectors.
Product pictures:
SPECIFICATIONS:
| Materials and surface treatment | |
| Insulators: |
Special PPS UL94-V0
|
| Contacts: |
Copper alloy/Ni+Au
|
| Property of electricity | |
| Resistance to high pressure: | 1200V AC/DC |
| Resistance to insulation: | ≥1000MΩ |
| LF pins: |
Operating current 25℃, ≤3A Operating current 85℃, ≤2.2A Contact resistance ≤10MΩ |
| HP Pins: | Operating current ≤20A |
| Mating times: | 500 times |
| Working temperature: | -60℃ to 150℃ |

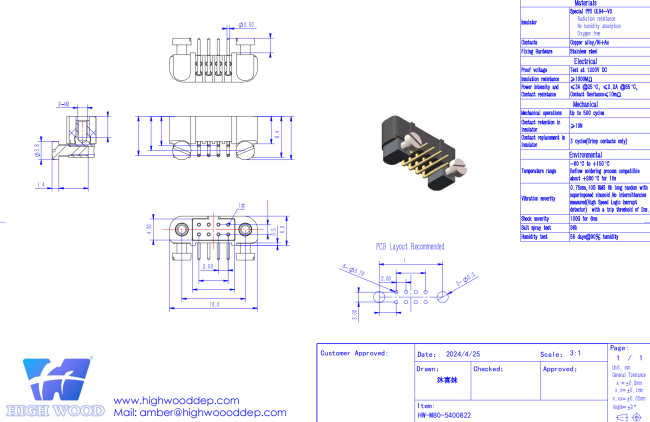

Drawing:
