X052B176G53 X052B241G53 Mitsubishi Diamond Guide X052B176G51 X052B176G52 X053B176G51

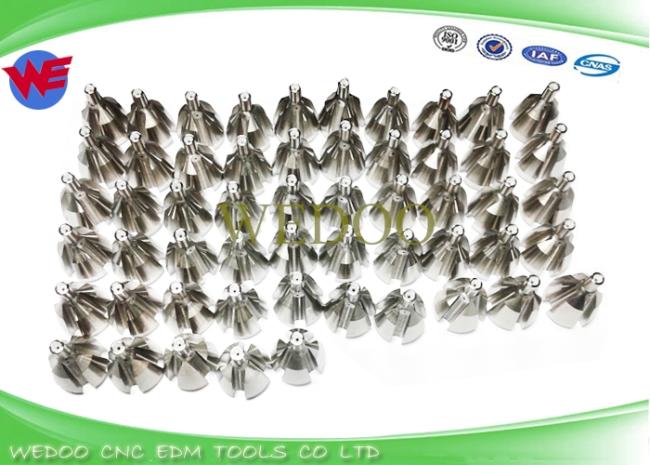

M117 EDM Wire Guide EDM Diamond Wire Guide For Mitsubishi Wire Cutting Machine
Dia : 0.255mm;0.26mm;
(0.105mm; 0.155mm;0.205mm, 0.21mm; 0.22mm; 0.255mm; 0.26mm; 0.305mm; 0.31mm;)
OEM Code :X052B176G53 X052B176G55 X052B176G54
Upper and Lower Wire Guide
Machine Model: DWC-HA,HA,SA,SB,SZ,(AF1)
M117 Wire Guide For Mitsubishi machine use (Made in China)
M117 Mitsubishi EDM Parts Lower diamond guide X052B176G51 X053B176G51 Ø 0.105mm
M117 Mitsubishi EDM Parts Lower diamond guide X052B176G52 Ø 0.155mm
M117 Mitsubishi EDM Parts Lower diamond guide X052B176G53 X052B241G53 Ø 0.205mm
M117 Mitsubishi EDM Parts Lower diamond guide X052B176G54 X052B241G54 X052B092G64 X052B140G52 Ø 0.255mm
M117 Mitsubishi EDM Parts Lower diamond guide X053C602G52 Ø 0.260mm
M117 Mitsubishi EDM Parts Lower diamond guide X052B176G55 X052B140G56 X052B241G55 X053C602G53 Ø 0.305mm
| Item No. | OEM Code | Size (mm) | Application (details) |
| M117 | X052B176G53 X052B176G55 X052B176G54 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Upper & Lower Wire Guide DWC-HA,HA,SA,SB,SZ,(AF1) |
| M101 | X052B040G64 X052B040G65 X052B040G66 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Upper & Lower Wire Guide DWC-F1,G,H,H`,CX,SX,FX,FA,QA,RA |
| M103 | X052B054G53 X052B040G64 X052B040G65 X052B040G66 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Upper & Lower Wire Guide DWC-H ,H`,H1,HA,C(MANUAL) |
| M107-1 | X052B123G53 X052B123G54 X052B123G56 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Upper Wire Guide DWC-H,HA,SA,SB,SZ,(AF1) |
| M107 | X052B240G52 X052B240G53 X052B240G54 | 0.105mm 0.155mm 0.205mm 0.255mm 0.305mm | Upper Wire Guide DWC-H,HA,SA,SB,SZ,(AF1) |
EDM Diamond Wire Guide is one of the most hottest parts from us . It is the best seller both in domestic
and abroad market! Export volume is thousands very years..
