Pulley Assembly Wire EDM Parts 451 Pulley Assembly With OD45 * L68 mm
451 Pulley Assembly WEDM Parts WEDM Guide Wheel Pulley Assembly
Composition:
Brass seat size: 45D*32mmL (2 pcs)
Bearing size: 16*5*5mm (625) ( 4 pcs)
Pulley size: 30*45mm (450) (1 pc)
| Model No. | Brass Seat size | Assembly Size | Pulley size | Bearing |
| 451 | 45D*32L | OD45 * L 68mm | 30*45mm | 625(16*5*5) |
Related 451 Pulley Assembly
Specification of brass guide seat: 45*32mm/42*28.5mm/42*35.5mm

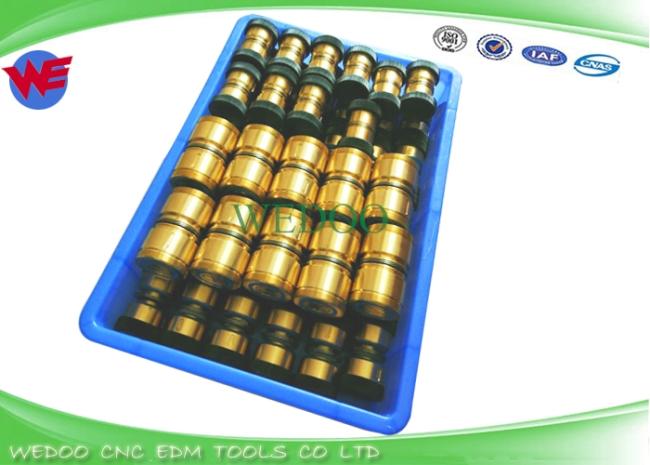

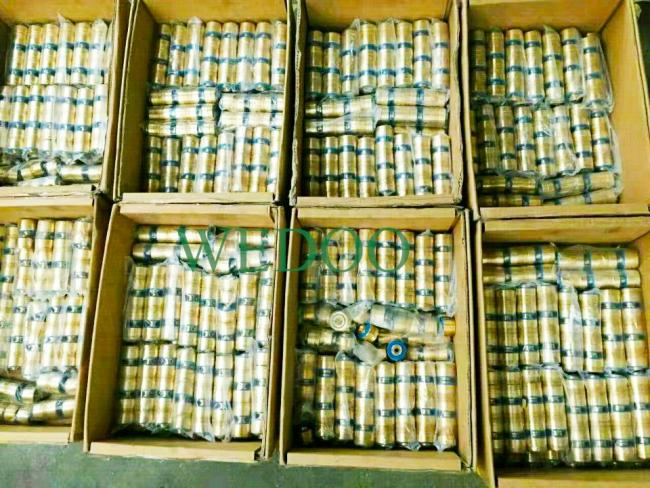

Products show
High precision:
Guide Wheel/Pulley Assembly For CNC High Speed Wire Cutting EDM Machine, assembled with guide wheel/pulley, brass base and bearings.
1. Guide wheel installation must be cleaned before installation, bearings after matching.
2. After installation manual, feel relaxed, flexible, non-blocking
3. Installation are not allowed to directly tap the guide wheel plane to prevent damage to the accuracy and face deformation.
V-shaped groove: radial runout ≤ 0.004mm; axial runout ≤ 0.004mm; bottom beating ≤ 0.004mm
4. Provide you with the wire cutting guide wheel size, we can custom processing.
