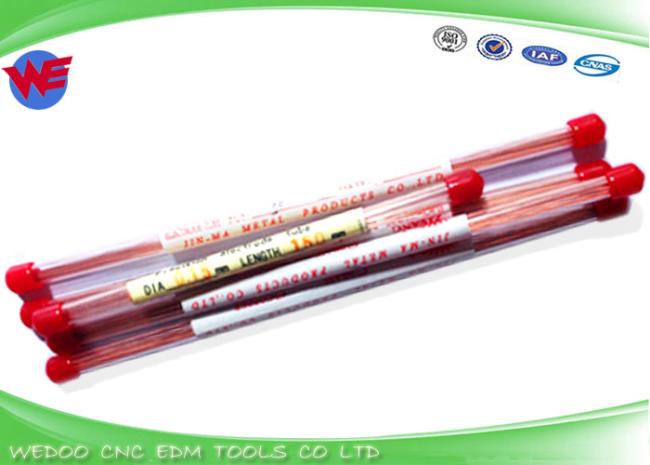

Single Hole Small Copper Tubing EDM Electrode Tube 0.2 X 200 mmL 0.1 x 150mmL
EDM Electrode Copper Tube 0.2x200mm For EDM Drilling Machine
Size: 0.2x200mmL
Material : Copper ( Brass is also available)

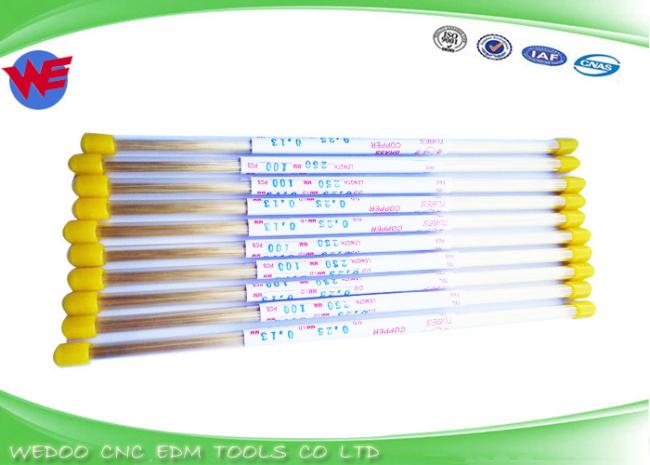

Packing 50 or 100 pcs in a tube
| Electrode Pipe | OD | Length | Material | Brand |
| Single hole | 0.2mm |
200mm 150mm |
Copper |
Ziyang, 5UM, Takibishi ,others |
Rages of EDM Electrodes.
1. Single hole EDM Brass / copper tube (0.1 to 6.0mm)
2. Multi-hole EDM Brass / copper tube (1.1 to 6.0mm)
3. Double hole EDM Brass / copper tube (0.5 to 1.0mm)
EDM Copper electrode tubes is used for process
Single hole / Double hole / Multi hole EDM Electrode Copper / Brass Tubes
| OD (mm) |
Single Hole |
Double Hole |
Mult Hole |
OD (mm) |
Single Hole |
Double Hole |
Multi Hole |
| 0.1 | v | x | x | 2.6 | v | x | v |
| 0.15 | v | x | x | 2.7 | v | x | v |
| 0.17 | v | x | x | 2.8 | v | x | v |
| 0.2 | v | x | x | 2.9 | v | x | v |
| 0.25 | v | x | x | 3 | v | x | v |
| 0.3 | v | x | x | 3.1 | v | x | v |
| 0.35 | v | x | x | 3.2 | v | x | v |
| 0.4 | v | x | x | 3.3 | v | x | v |
| 0.45 | v | x | x | 3.4 | v | x | v |
| 0.5 | v | v | x | 3.5 | v | x | v |
| 0.55 | v | v | x | 3.6 | v | x | v |
| 0.6 | v | v | x | 3.7 | v | x | v |
| 0.65 | v | v | x | 3.8 | v | x | v |
| 0.7 | v | v | x | 3.9 | v | x | v |
| 0.75 | v | v | x | 4 | v | x | v |
| 0.8 | v | v | x | 4.1 | v | x | v |
| 0.85 | v | v | x | 4.2 | v | x | v |
| 0.9 | v | v | x | 4.3 | v | x | v |
| 0.95 | v | v | x | 4.4 | v | x | v |
| 1 | v | v | v | 4.5 | v | x | v |
| 1.1 | v | x | v | 4.6 | v | x | v |
| 1.2 | v | x | v | 4.7 | v | x | v |
| 1.3 | v | x | v | 4.8 | v | x | v |
| 1.4 | v | x | v | 4.9 | v | x | v |
| 1.5 | v | x | v | 5 | v | x | v |
| 1.6 | v | x | v | 5.1 | v | x | v |
| 1.7 | v | x | v | 5.2 | v | x | v |
| 1.8 | v | x | v | 5.3 | v | x | v |
| 1.9 | v | x | v | 5.4 | v | x | v |
| 2 | v | x | v | 5.5 | v | x | v |
| 2.1 | v | x | v | 5.6 | v | x | v |
| 2.2 | v | x | v | 5.7 | v | x | v |
| 2.3 | v | x | v | 5.8 | v | x | v |
| 2.4 | v | x | v | 5.9 | v | x | v |
| 2.5 | v | x | v | 6 | v | x | v |
Note:"x" is means disable to supply
