Semi Finished Optical Polycarbonate Lens Blanks 1.59 Index AR Coating
1.59 Polycarbonate AR Coating Semi Finished Optical Lens Blanks
I. Technical Data:
|
SF 1.59 Polycarbonate Lens |
|||||||||
|
Material: 1.59 Index Polycarbonate(Ne=1.586, Abbe value=32, Specific gravity=1.20 ) |
|||||||||
| CONVEX SURFACE | CONCAVE SURFACE |
C.T (mm) |
E.T (mm) |
Dia (mm) |
|||||
|
Nominal Curve |
True Curve | Sag(sagitta: 40mm) | Sag(sagitta: 50mm) | Radius | Radius | ||||
| 1.586 | 1.530 | ||||||||
| 0.50 | 0.50 | 0.45 | 0.17 | 0.27 | 1,175.06 | 180.31 | 10.7 | 16.5 | 75 |
| 1.50 | 1.25 | 1.13 | 0.43 | 0.67 | 467.10 | 9.8 | 15.5 | ||
| 2.50 | 2.26 | 2.04 | 0.77 | 1.20 | 259.64 | 102.81 | 10.0 | 14.2 | |
| 3.50 | 3.28 | 2.97 | 1.11 | 1.74 | 178.75 | 10.1 | 13.3 | ||
| 4.25 | 4.55 | 4.12 | 1.55 | 2.42 | 128.72 | 10.4 | 11.8 | ||
| 5.25 | 5.84 | 5.28 | 1.98 | 3.11 | 100.40 | 9.9 | 9.9 | ||
| 6.00 | 7.13 | 6.45 | 2.42 | 3.83 | 82.22 | 10.1 | 8.5 | ||
| 7.50 | 8.43 | 7.62 | 2.87 | 4.54 | 69.55 | 10.8 | 7.0 | ||
| 8.50 | 9.75 | 8.82 | 3.34 | 5.30 | 60.12 | 9.9 | 4.5 | ||
II. PC Lenses:
PC lenses, also known as "space lenses", "universe lenses", chemical name is polycarbonate, is a thermoplastic material. That is, the raw material is in a solid state and is shaped into a lens after being heated. Therefore, the overheated lens of the lens will be distorted after being heated, which is not suitable for hot and humid occasions. PC lenses with toughness, not broken (2cm can be used for bullet-proof glass), it is also known as safety lenses. The proportion of only 2 grams per cubic centimeter, is currently used for ultra-light lens materials.
 |
The benefits of PC lenses
1. PC lenses adhering to the excellent properties of raw materials impact resistance, and because of the high refractive index and light weight, greatly reducing the weight of the lens. Generally speaking, the weight of pc lenses is 57% lighter than common glass lenses, and 43% lighter than common resin lenses.
2. UV protection, can block more than 99.9% UV rays.
3. Not easy Yellow, can save 3~5 years. |
III. Coating Choice:
| Hard Coating |
AR Coating/ Hard Multi Coated |
Super Hydrophobic Coating/ Crazil Coating |
| Enhancing the hardness and resistance on the surface of lenses, prevent lenses from being scraped easily . | Coating anti-reflective film can effectly reduce the reflection of light , make the lenses more cclear and transparent . |
Making the lens waterproof, antistatic, anti slip and oil resistance, also convenient for clean |

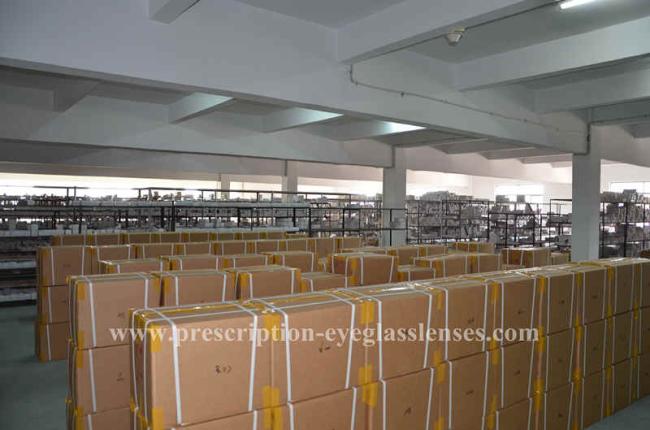

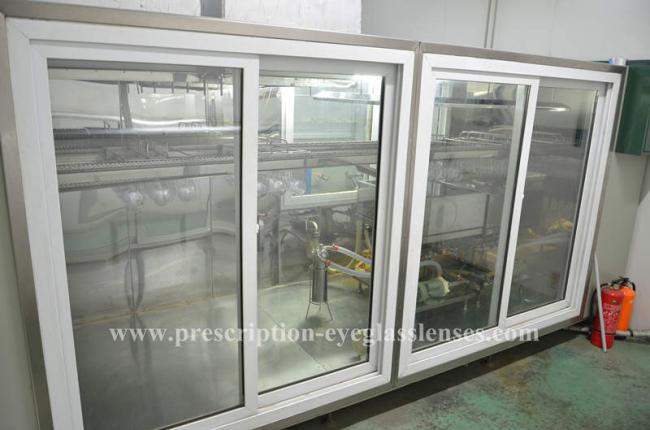

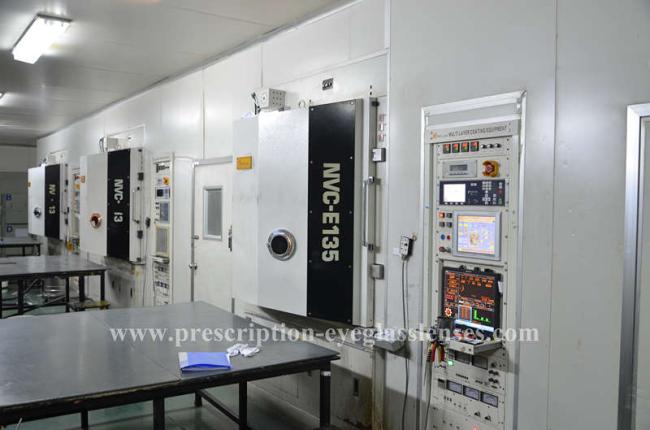

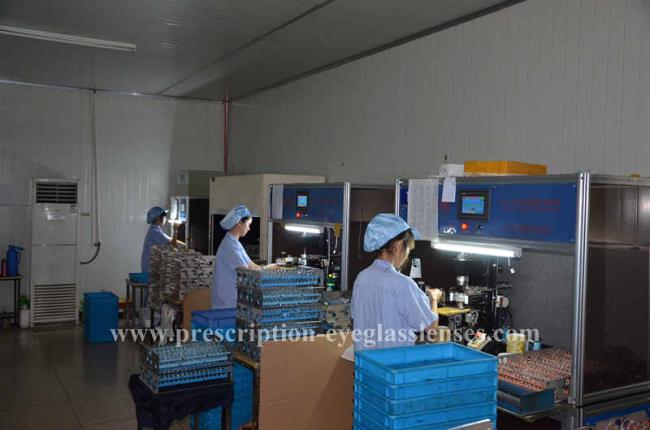

IV. Factory pictures:
 |
 |
 |
 |
 |
 |
V. Packing&Shipping:
| Envelops | 1) standard white envelop |
|
2) color envelop with customer design weight: 157g size: 9*9*9cm |
|
| Outer box | standard export paper carton 38cm*48cm*35cm ( 0.064 CBMS ) |
| Include around 500 pairs of finished lenses, 21kgs | |
| Include around 100 pairs of semi finished lenses, 15kgs | |
| Lead time | Depend on the quantity |
| Carrier | We can choose for you or offer us your cooperative company |
| All the numbers provided above are estimated number, the actual numbers need to be measured according to the order you make | |
VI. Our service:
1. Our Customer service will begin to track the product processing every day until you receive the goods and verify the product quality when you finish the payment.
2. Online via SKYPE, Whatsapp; Also through mail, voice phone, message could contact us at any time!
3. Follow up the case, record the entire process. Solution will be provide with 24 hours.
Meanwhile, the problem complaint will be reported to QC department.
QC will find defect from which department, who is in charge to identify responsibility.
4. Collect and record all the voice from each customer respond, suggestion, requirement.
5. We own the best after-sale service, if any problems happen, our team will do our best to solve for customers.
