HMC Anti Reflective Semi Finished Lenses 1.67 High Index ASP UV400 MR-7 Monomer

Price Negotiable
Price: negotiation
MOQ: 100 pairs
Delivery Time: 10~30 days, depend on your quantity
Brand: Aogang Optics
Product Description

High Index ASP UV400 1.67 MR-7 HMC Semi Finished Lens Blanks With Anti-reflective For Reading

I. Techinical Data:



  1.67 Semi Finished Lens
  Material: 1.67 Index Resin(Ne=1.67, Abbe value=34, Specific gravity=1.33 )
NOMINAL
CURVE
TRUE*
CURVE
Radius of
Curvature
SAG 40
(mm)
BACK
CURVE
DIAMETER*
(mm)
C.T*
(mm)
E.T*
(mm)
0.50 0.70 950.00 0.23 12.00 70 5.9 17.8
1.00 0.93 715.05 0.30 6.60 75 7.3 13.5
2.00 2.13 312.21 0.62 6.60 75 7.3 12.5
3.00 2.91 228.52 0.88 3.70 75 9.3 10.6
4.00 3.99 166.67 1.18 3.70 75 8.0 8.2
5.00 5.02 132.47 1.50 5.40 75 6.6 7.1
6.00 5.94 111.95 1.75 5.40 70 7.2 7.1
7.00 7.08 93.93 2.08 6.60 70 7.1 7.1
8.00 8.03 82.81 2.35 8.10 70 6.4 7.1
9.00 10.56 62.97 3.08 5.40 70 11.3 6.7



II. The definition of semi finished lens:



1) Semi-finished lens is the raw blank used to produce the most individualized RX lens according to thepatient's prescription. Different prescription powers request for different semi-finished lens types or base curves.

2) The semi-finished lenses are produced in a casting process. Here, liquid monomers are first poured into moulds. Various substances are added to the monomers, e.g. initiators and UV absorbers. The initiator triggers a chemical reaction that leads to hardening or "curing" of the lens, while the UV absorber increases the UV absorption of the lenses and prevents yellowing.

III. The advantages of the 1.67 Index:



1. Lighter weight and thinner thickness, up to 50% thinner and 35% lighter than other lenses

2. In the plus range, aspherical lens is up to 20% lighter and thinner than spherical lens

3. Aspheric surface design for outstanding visual quality

4. Flatter front curvature than non-aspheric or non-atoric lenses

5. Eyes are less magnified than with traditional lenses

6. High resistance to breakage (very suitable for sports and children’s spectacles)

7. Full protection against UV rays

8. Available with blue cut and photochromic lens

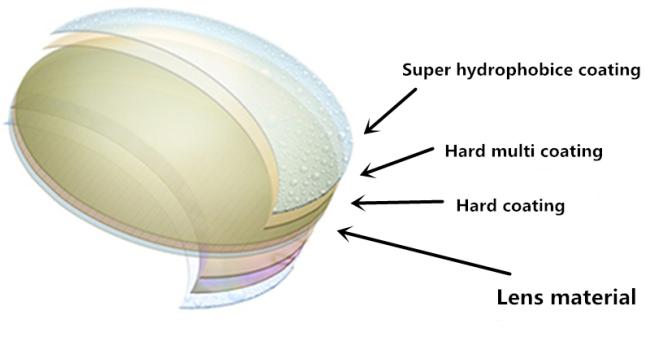

IV. Coating Choice:



Depending on the layers of coating, lenses differ in functionality. Coating consists of much technicality as much as lenses do, here is 'how lens coating works' for your reference.



Hard coating: It also can be called anti-scratch coating, is to enhancethe hardness of the lens to prevent the substrate scratch



AR coating: It also can be called hard multi coated or anti-reflection coating, is to protect the lens effectively from reflection

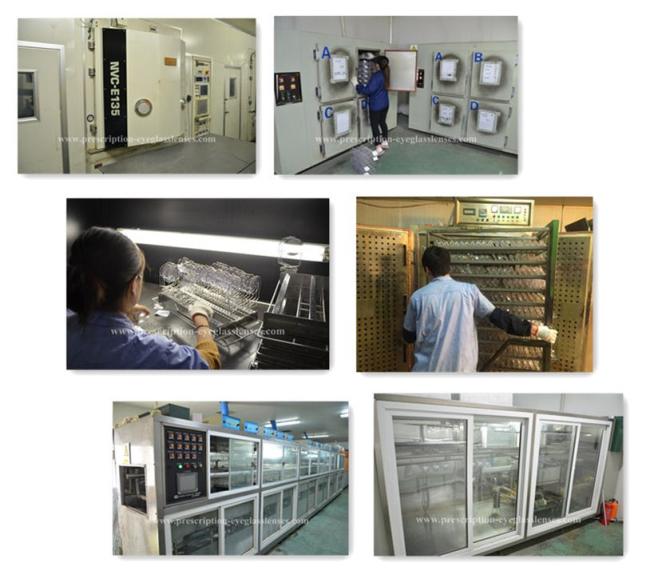

V. The pictures of company:

VI. Packing&Shipping:


Envelop
Choice 1 Choice 2
White envelop

color envelop with customer design

weight: 157g   size: 9*9*9cm

Outer box

standard export paper carton 38cm*48cm*35cm(0.064 CBMS)

Finished lens Semi-finished lens

about 500 pairsper carton, 21kgs

about 100 pairs per carton, 15kgs

Lead time
Depend on the quantity
Carrier
We can choose for you or offer us your cooperative company
  All the numbers provided above are estimated number,the actual numbers need to be measured according to the            order you make

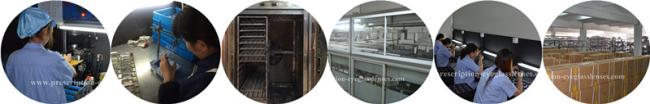

VII. Why choose us?



1.499 Single Vision Prescription Anti-Reflection Ophthalmic Lenses In CR39

1. About Us
We are a professional optical lens manufacturer over 10 years in China. All of our lenses are exported to European countries, Japan, Korea, North America, South America, Middle East, Southeast Asia, Africa markets. We guarantee quality to all buyers all over the world and we gained a great reputation for buyer's quality

2.About Samples
Our customers just need send us requirements, then we will send samples accordingly. We only need 1~2 days to finish the sample production. Samples are free, but according to our company rule, our customers need to assume the shipping cost.

3. About payment term
30% T/T in advance, the balance before shippment
