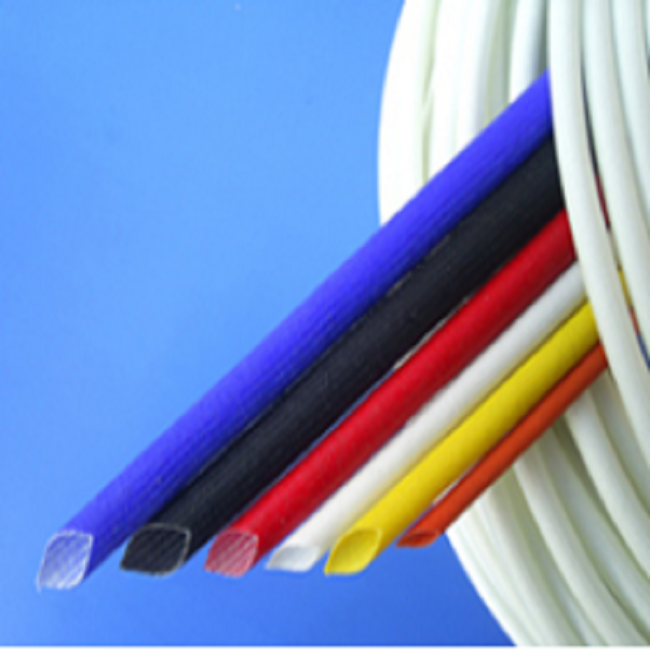

2.0mm Silicone Rubber Fiberglass Sleeving Insulating Protection Glass Fiber Sleeving
Price:
Deliberate
MOQ:
1000meters
Delivery Time:
5-7days
Product Description
Extruded Silicone rubber fiberglass sleeving For insulating protection
It can be employed for insulating one or more un-insulated or partially insulated conductors ,bus bars, component leads,or assemblies of electrical componcnts .These sleevings with its good dielectric strength ,supple and flame retarding properties make these sleevings high performance qualities and suitable for a wide range of uses.
Inside diameter measurement |
|||
Inside diameter |
Wall thickness |
||
Range |
Tolerance |
4000V |
7000V |
0.5-2.0mm |
+0.20-0.00mm |
0.40±0.05mm |
0.45±0.05mm |
2.5-3.0mm |
+0.25-0.00mm |
0.40±0.05mm |
0.50±0.05mm |
3.5-5.0mm |
+0.35-0.00mm |
0.50±0.05mm |
0.50±0.05mm |
6.0-9.0mm |
+0.50-0.00mm |
0.55±0.05mm |
0.60±0.05mm |
10.0-12.0mm |
+0.70-0.00mm |
0.60±0.05mm |
0.65±0.05mm |
13.0-20.0mm |
+0.80-0.00mm |
0.65±0.05mm |
0.70±0.05mm |
22.0-35.0mm |
+0.90-0.00mm |
1.00±0.05mm |
1.05±0.05mm |
Specification: |
|||
ITEM |
VALUE |
||
Continuous Operating Temperature |
-10ºC+200ºC |
||
Temperature Endurance |
265ºC±2ºC168>1/2 Original value of voltage |
||
Aging Test |
260ºC,6 hrs without crackle |
||
Cold bend |
Witout crackle |
||
Horizontal Flame Test |
<30 seconds |
||
(V W-1)Flame Retardance |
<30 seconds |
||
Submerge Water Test |
Not-sticky,non-deformed,non bated |
||
Temperature-resistunce |
+200ºC-10ºC |
||
Average-voltage |
4000V-7000V |
||
Individual Value |
2500V-5000V |
||
