7kv Glass Fibre Sleeving 600V Silicone Fiberglass Sleeve Non Alkali
SILICONE GLASS FIBRE SLEEVING
Max.Temperature Rating:200℃
Max.Working Voltage:600V
◆ STRUCTURE
The material content of the 7.0KV is Non-Alkali Fiber Glass Braided with silicone Vanish and Dried.
◆ USAGE
It can be employed for insulating one or more un-insulated or partially insulated conductors ,bus bars, component leads,or assemblies of electrical componcnts .These sleevings with its good dielectric strength ,supple and flame retarding properties make these sleevings high performance qualities and suitable for a wide range of uses.
◆ SPECIFICATION
| ITEM | PERFORMANCE | NOTE | |
|
DIELECTRIC BREAKDOWN VOLTAGE KV AC
|
MINIMUM AVERAGE | ≥7.0 |
BEFORE AGED
|
| MINIMUM AT ANY POINT | ≥5.0 | ||
| MINIMUM AVERAGE | ≥3.5 |
168 HRS* 265±5℃
|
|
| MINIMUM AT ANY POINT | ≥2.5 | ||
| NO BREAKDOWN | / |
1 KV IN 2% SALT WATER
|
|
|
THERMAL ENDURANCE
|
NO INDICATION OF CRACK | OK |
1440 HRS* 235±5℃
|
|
FIRE RESISTANCE
|
VW-1 ≦60S | OK | UL 1441 |
◆ DIMENSION
| INSIDE DIAMETER /MM (mm) |
WALL THICKNESS MINIMUM/MM
|
|
| SIZE | TOLERANCE | |
| 0.5-1.5 | +0.2, -0.1 |
ID:≤6.0mm WT:≥0.40mm ID:＞6.0mm WT:≥0.6mm |
| 2.0-9.0 | +0.3, -0.1 | |
| 10.0-12.0 | +0.5, -0.5 | |
| 14.0-30.0 | +1.0, -1.0 | |
◆ PACKAGE
The finished sleevings can be cut into a standard shipping length of 1,25,50,or 100 meters.

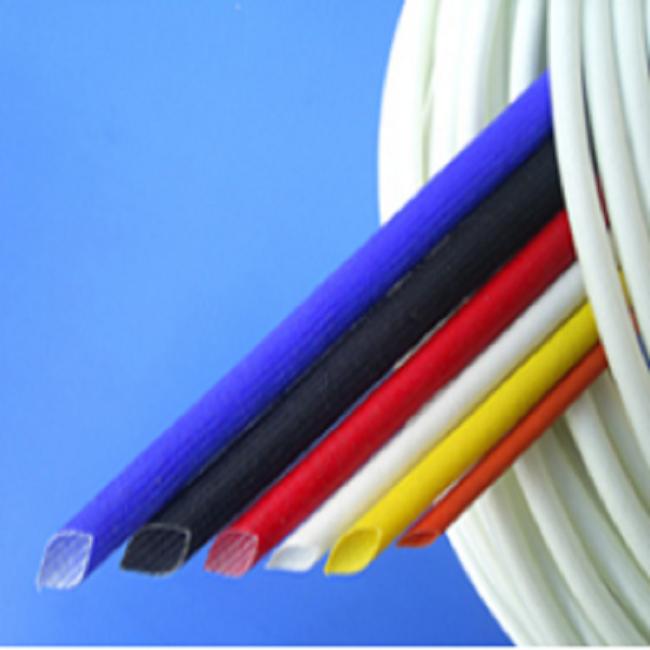

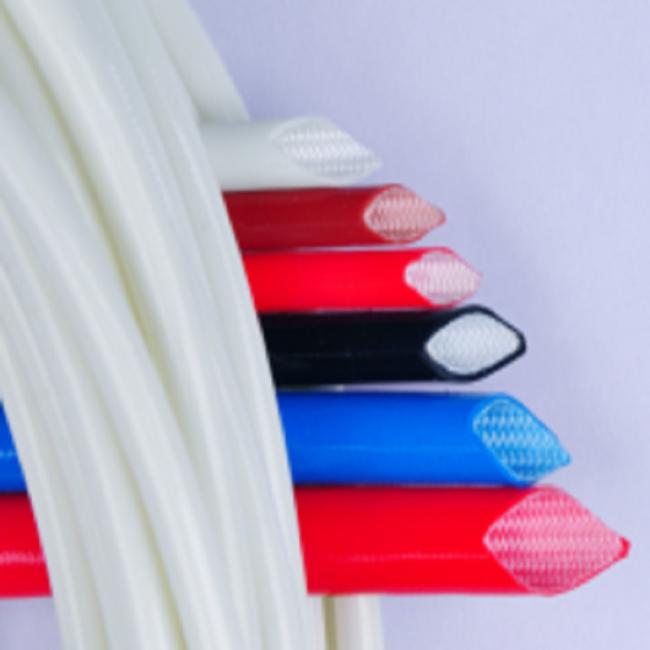

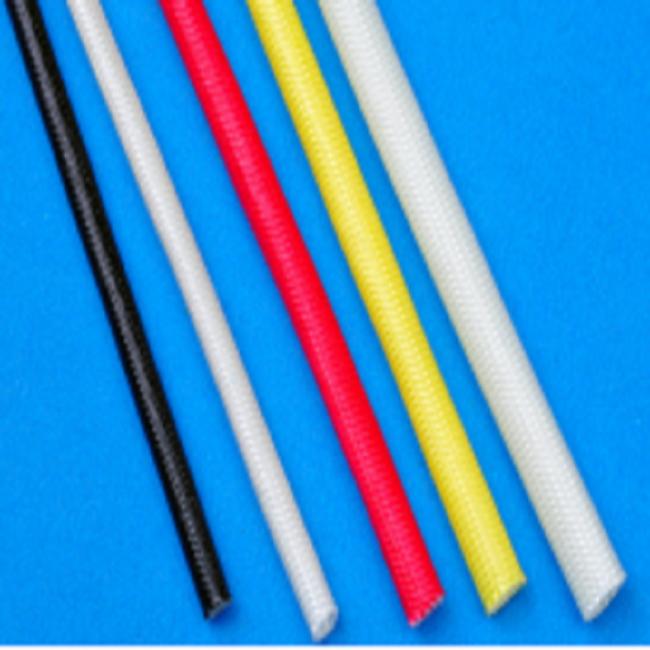

◆ COLOR
White is the standard color, But Black,Blue,Red,Yellow,Green and other color available.
