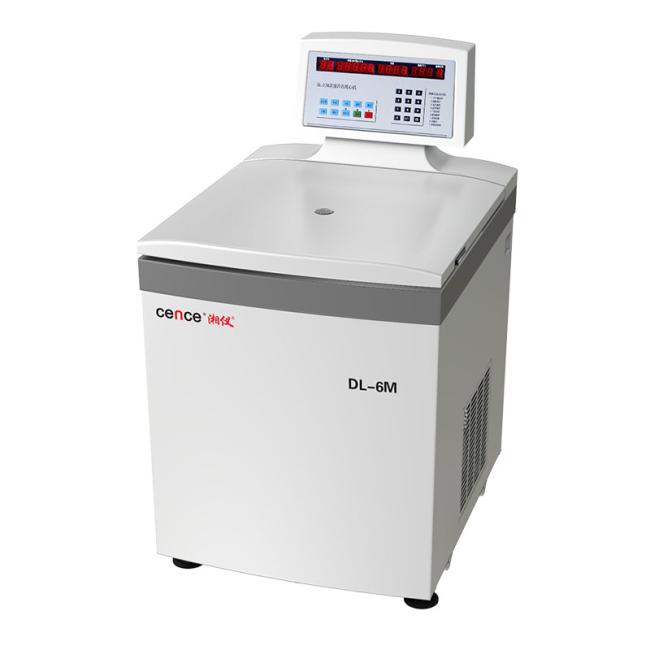

DL-6M Blood Bank Centrifuge Low Speed 6000r/Min 6x1000ml Large Capacity
Blood Bank Centrifuge DL-6M Low Speed 6000r/Min 6x1000ml Large Capacity Centrifuge
DL-6M large capacity low-speed refrigerated centrifuge is a classic model developed by Xiangyi/Cence ,which is very popular in the market. With swing rotor 6x1000ml(round bucket) and 6x1000ml(oval bucket) , it’s an ideal instrument for biopharmaceutical, biological products and blood bank.
![]()

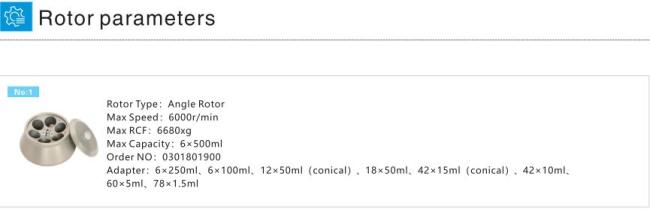

Rotor Parameters
![]()
![]()
Product Advantages
1. 9 acceleration and 10 deceleration option based on user’s requirement.
2. Touch panel, LED display
3. Environment-friendly refrigerant is adopted .The temperature setting range is - 20 ℃ ~ 40 ℃, and maximum speed temperature can be controlled below - 4 ℃.
4. Multiple protection against imbalance ,over-speed, over-temperature as well as door lid.
5. AC brush-less motor is more reliable.
6. Whole steel housing and three tiers containments for the safety of operator and instrument.
7. Low noise (less than 65dB) and low vibration.
8. The rotor adopt 7075-T6 aviation grade alloy aluminum ,hard oxidation, corrosion resistance. From raw material to finished products, each process is strictly controlled. The flaw detection report , tensile test report , chemical composition test report and processing test report can be provided.
Technical Parameters
| Model | DL-6M | |
| Max. Speed | Angle rotor | 6000rpm |
| Swing rotor | 4200rpm | |
| Max.RCF | Angle rotor | 6680xg |
| Swing rotor | 5100xg | |
| Max.capacity | Angle rotor | 6x500ml |
| Swing rotor | 6x1000ml | |
| Speed accuracy | ±10rpm | |
| Speed range | 100rpm~Max. speed, progressive step100( it can be customized, multiples of 10) | |
| Time Range | 1min to 23h59min | |
| Mode of timing | timing after reaching the set speed | |
|
Acceleration |
9 acceleration rates,10 deceleration rates(0 for free stop) | |
| Temp Range | -20℃ to 40℃ (1℃ adjustable) | |
| Pre-cooling | Unavailable | |
| Temp accuracy | ±1℃ | |
| Step centrifugation | Available (100 programs,each program can be divided into 5 steps. More programs can be set through external memory ) | |
| Compressor set | Environment-friendly compressor set with R404a | |
| Drive system | Brushless motor with large torque | |
| Noise | <65dB(A) | |
| Power supply | AC220V +/-22V,50Hz 30A | |
| Power consumption | 3.0kW | |
| Dimensions(WxDxH) | 73x84x120cm | |
| Packing size(WxDxH) | 92x104x152cm | |
| Weight | 260Kg | |
| Key parts material | 316 centrifuge chamber, PPCO test bottle, Aluminum alloy rotor. | |
Company Profile
Cence is a top centrifuge brand created and owned by Hunan Xiangyi Laboratory Instrument Development Co., Ltd. (Company name will be briefed as Hunan Xiangyi in following parts)
Hunan Xiangyi is a high-tech enterpise that manufactures centrifuge machines, including floor standing centrifuge, blood centrifuge, blood bag centrifuge / blood bank centrifuge, medical centrifuge, laboratory centrifuge, prp centrifuge / prf centrifuge, refrigerated centrifuge, crude oil centrifuge, high speed centrifuge, low speed centrifuge, etc.
Founed in 1966, Hunan Xiangyi has specialized in the research and development as well as production and manufacturing of centrifuge machines for more than 50 years.
China's first ultra high speed refrigerating centrifuge (55000r/min) and first high speed refrigerating centrifuge were both manufactured by Hunan Xiangyi.
As a mature and famous centrifuge brand, Cence welome new and old customers from all walks of life for future business and mutual success!
Certificates
As an ISO9001 and ISO13485 approved company, Hunan Xiangyi produces high quality centrifuges. Cence centrifuges have got CE certificate and have been exported to over 80 countries, including the United States, Canada, Britain, Germany, Japan, Turkey, India, Mexico, Vietnam, etc.
Packaging and Delivery
Cence centrifuges are well and safely packed in wooden cases or carton boxes. They are always delivered in good condition to customers all over the world.
Exhibitions
FAQ
Q: Can I get some samples?
A: Yes, but the sample and shipping fee will be charged, and in good price.
Q: What’s the warranty on your products?
A: All Cence products have one year warranty.
We offer free accessory replacement within warranty. The shipping fee is also on us. Beyond warranty, we only charge accessory cost fee.
Q: What payment method do you accept?
A: We accept western union, T/T, LC and alibaba trade assurance paid.
Q: What’s the lead time and delivery time?
A: For sample order, lead time is normally within 4-7 days after deposit is recevied. For bulk order, it is 15-30 days.
As for delivery time, it depends on the distance and shipping method. You can check with us when place the order.
Q: Can you do OEM or ODM?
A: As an original supplier that owns factory, we can do both OEM and ODM.
