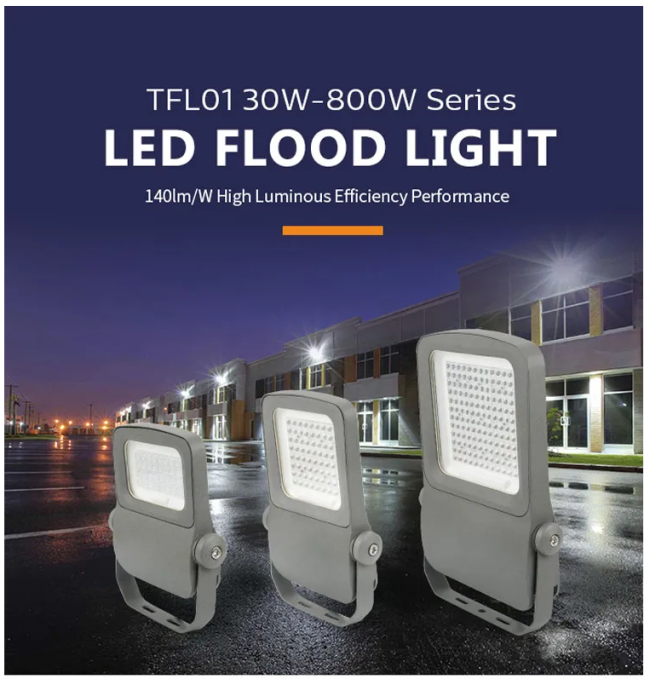

Adjustable Bracket LIPer LED Flood Light 270deg 48000 Lumens 400w SurfACe Mounted
Classical design glass cover 30W-800W LED flood light
High performance design with multi-chip package 3030/5050 LED source.
The light transmittance up to 98%.Luminous efficacy up to 130-150lm/w.
30°,60°,90°,120°,113°x97°,P50°,TYPE II-M,III-M,IV-M,V Deg lens
270° adjustable bracket available for outdoor & indoor lighting application.
With excellent housing design reach IP66/IK09 rating.
Lifespan over 50,000 hours,5 years warranty
|
Model NO.
|
TFL0101-30 | TFL0102-50 | TFL0103-100 | TFL0103-150 | TFL0104-200 |
|
Wattage
|
30W
|
50W
|
100W
|
150W
|
200W
|
|
Beam angle
|
Symmetric: 30°,60°,90°,120° ,Type V
Asymmetric: 113°x97°,P50°,TYPE II-M,III-M,IV-M
|
||||
|
Lamp efficiency
|
130-145lm/w (3030/5050 LED)
|
||||
|
CCT
|
4000K / 5000K / 6000K / 6500K
|
||||
|
Lamp size(mm)
|
230x270x50 | 224x320x50 | 291x422x62 | 291x422x62 | 342x520x65 |
|
N.W.(KG)
|
1.71 | 2.5 | 4.85 | 4.85 | 6.65 |
|
Model NO.
|
TFL0105-300 | TFL0105-400 | TFL0106-600 | TFL0106-800 |
|
Wattage
|
300W
|
400W | 600W | 800W |
|
Beam angle
|
Symmetric: 30°,60°,90°,120° ,Type V
Asymmetric: 113°x97°,P50°,TYPE II-M,III-M,IV-M
|
|||
|
Lamp efficiency
|
130-145lm/w (3030/5050 LED)
|
|||
|
CCT
|
4000K / 5000K / 6000K / 6500K
|
|||
|
Lamp size(mm)
|
450x620x84
|
450x620x84 | 520x440x174 | 520x440x174 |
|
N.W.(KG)
|
13.2
|
13.4 | 22.4 | 22.4 |
Pictures of LED flood light design
Various beam angles LED floo light
The application of the high mast pole 1000W LED stadium light
FAQ:
Q1.Can we make our own label on the sample lights?
Yes, we can use the label you offer,we can also do OEM & ODM.
Q2.Our project is on seaside, what if your lights be corrosion by sea water?
Metal has high corrosion resistance.Besides, we do best on light surface treatment,
electrostatic spraying and electrophoresis can effectively protect our lights from salt water corrision.
Q3. I really would like to try a sample first ,is that possible?
Yes,that's sure. Our MOQ only 1 pieces,easy know each other better via samples, we look on the long term and win-win cooperation.
Q4. We now have football stadium projects need to do the lighting design,can you help us?
Sure we can, we are the leader of outdoor high power LED flood lights and LED design provider, our design teams can provide you the best solution. And if you have the tech to make design yourself , we can provide the IES files for you.
Q5.I have a football/tennis court ,what's your suggestion?
Please give me the below information:
A:the area of the field
B:the loction and the height of the light poles
C:the requirement of the illumination
