Smart Sensor UFO High Bay Led 240W 200W 150W 165lm/W Super High Efficacy

Price Negotiable
Price: Negotiable
MOQ: 10PCS
Delivery Time: Negotiable
Brand: phenson
Product Description
Packaging & delivery
Port
Shenzhen
Lead time:
Quantity(pieces) 1 - 200 >200
Lead time (days) 15 To be negotiated

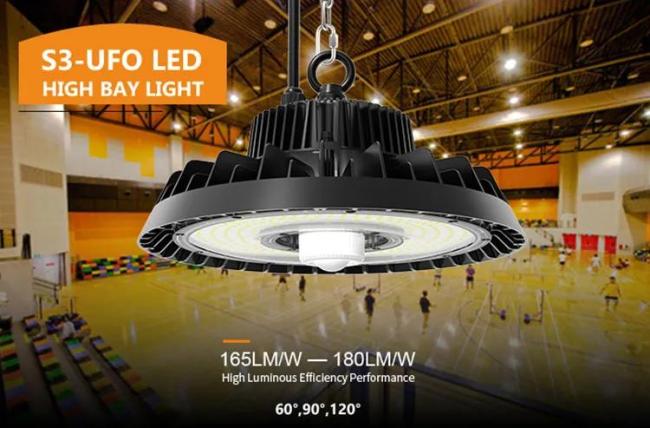

IP65 UFO LED High Bay Light 100W 120W 150W 200W 240W 160-180lm/w
Main Features

• Power Range: 100W 120W 150W 200W 240W LED high bay light.
• High Lamp Efficacy: 160-180 lm/w.
• Lens Angle: 60° , 90°, 120°
• Lifespan: >50,000 hours, 5 years warranty.

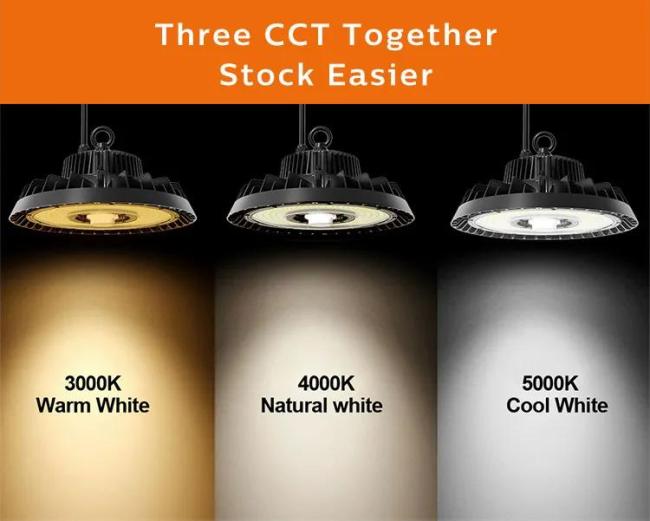

• CCT: 3000K 4000K 5000K 6000K are all available.

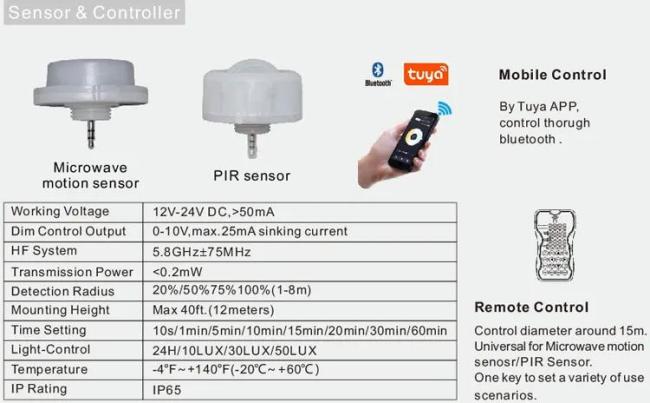

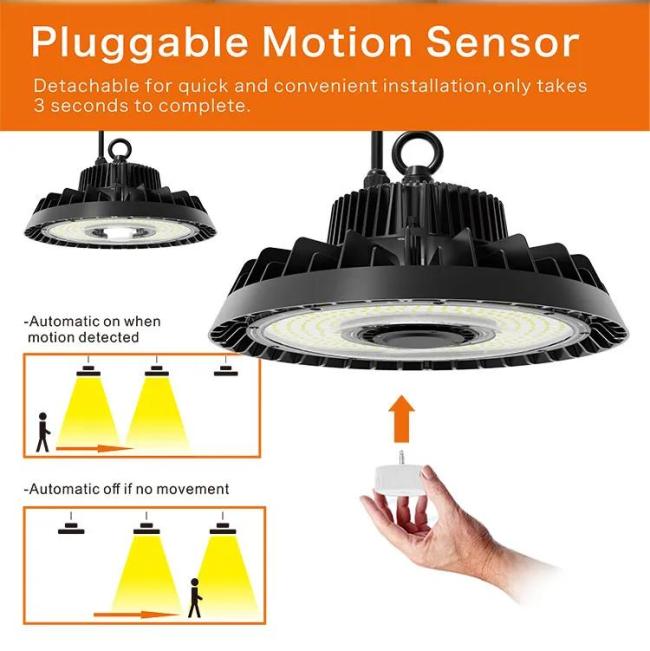

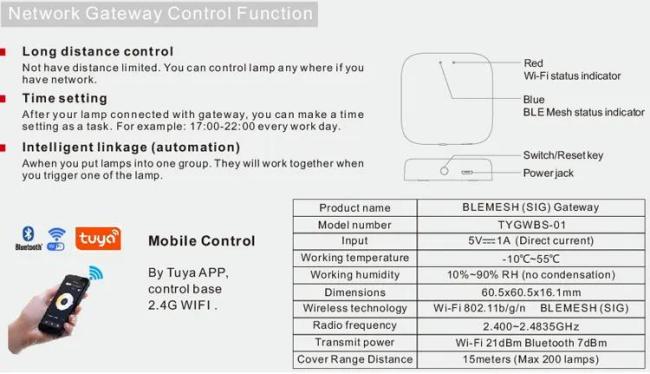

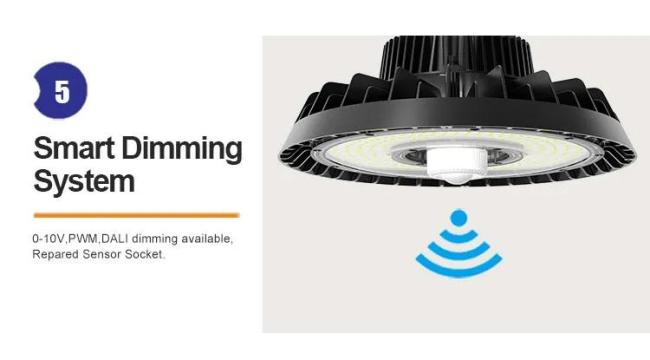

• Sensor Type: Pluggable motion sensor / WIFI control / 0-10V dimming control optional.

• Control Way: Mobile App/Remote/Auto



Parameters

Parameters of UFO LED high bay light



Model S3-100 S3-120 S3-150 S3-200 S3-240
Power 100W 120W 150W 200W 240W
Power Efficiency 0.91
Input Voltage AC 100-277V 50/60Hz
Standard Efficiency 165lm/w
Luminous Flux(±5%) 16500lm 19800lm 24750lm 33000lm 39600lm
High Lumen efficiency 180lm/w
Luminous Flux(±5%) 18000lm 21600lm 27000lm 36000lm /
CCT 3000K/4000K/5000K/6000K
CRI >70(>80,>90 optional)

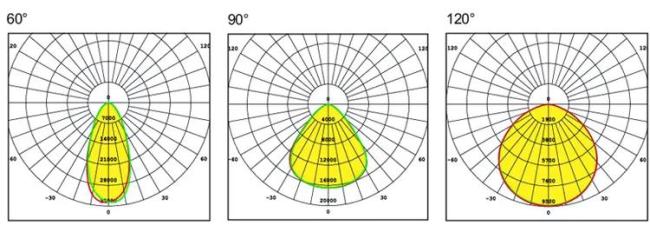

Beam Angle 60°/90°/120°
Dimmable 0-10V/PWM/Microwave Motion Sensor/PIR Sensor
N.W.(KG) 2.8 2.8 2.9 3.4 3.5
G.W.(KG) 3.6 3.6 3.7 4.2 4.3
IP Rate IP65

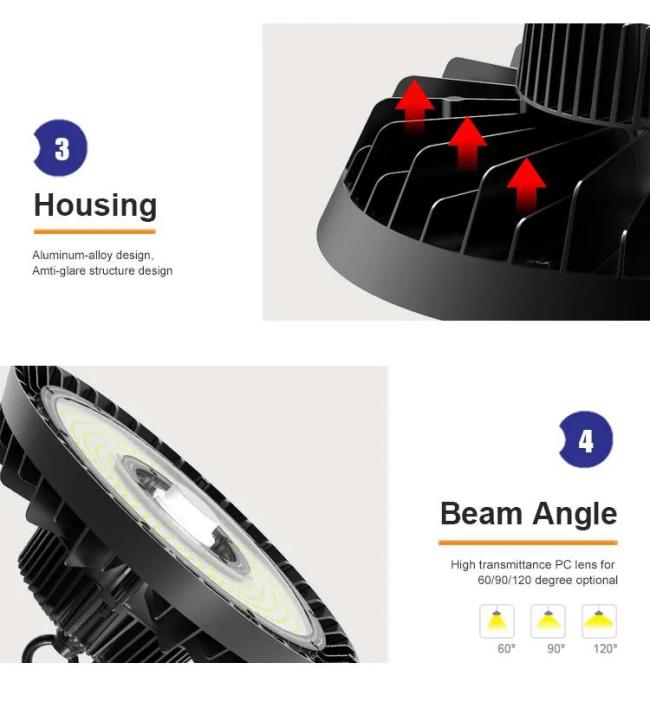

Body Material Aluminum Alloy
Lens Material PC
Lamp Size(mm) Ø270xH163 Ø320xH173
Packing Information(mm) 360x360x190mm
Lifespan >50,000 Hours
Product Details

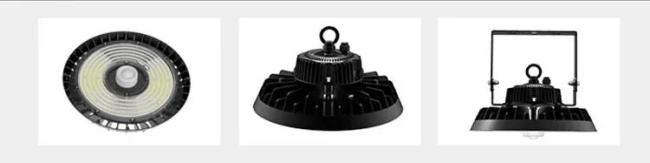

Product details of UFO LED high bay light

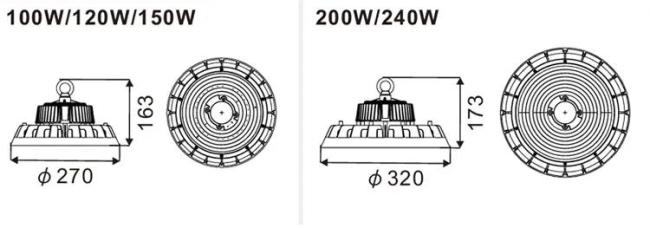

Dimension

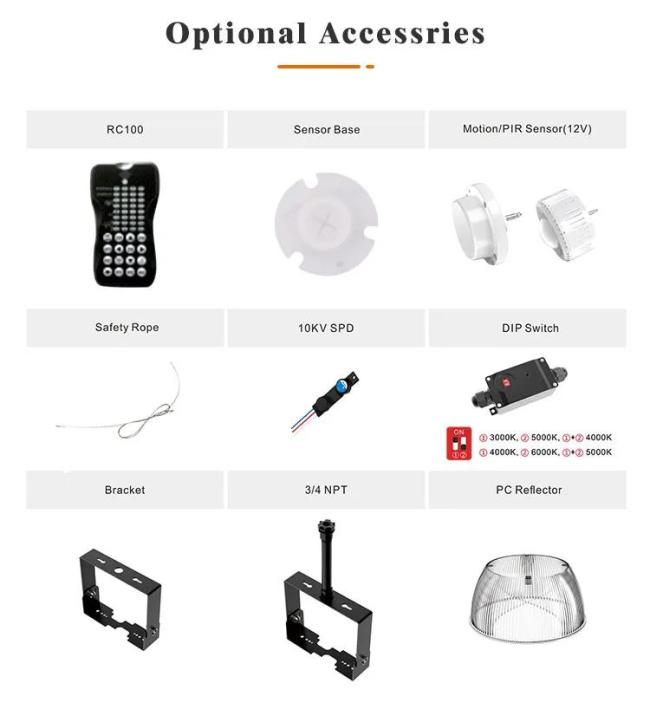

Product Accessories

100W-240W UFO LED high bay light series

Contact for further details.



Applicati

Our services contain the all LED lighting industry chain: LED package to LED lighting, optical lens design to LED lighting solution provide. Depending on the parent companys R& D advantage,we have perfected intellectual property control system, R&D control mechanism in the initial period. We keep the idea of high quality first all the time,offering LED outdoor lighting products,module products,sport lighting,industrial lighting,smart lighting controlling system to customers. Products have been approved ENEC,CB,ETL,DLC,CE,Rohs,LM79,LM80 etc authorized certificates & reports, We have been listed in Guangdong province LED Benchmarking system, Government Energy-Saving product purchased company.



Tochlighting pursue the product innovation and customer needs always,offer the best product and services to clients,make contribution to the LED industry development and the earths sustainable development.
