Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring
Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring
Circle Led Ring Specification
| Model | WS2812B-1leds | 8leds | 12leds | 16leds | 24leds | 32leds |
| Voltage | DC5V | |||||
| Power | 0.3W | 2.4W | 3.6W | 4.8W | 7.2W | 9.6W |
| Led Color | RGB,also can use the controller to reach many knids of effect | |||||
| Inner Diameter | / | 16mm | 36mm | 56mm | 76mm | 96mm |
| Outer Diameter | 12mm | 32mm | 52mm | 72mm | 92mm | 112mm |
| Waterproof | IP20,no waterproof | |||||
| Installation | Double outlet-100mm,use the screw to installation. | |||||

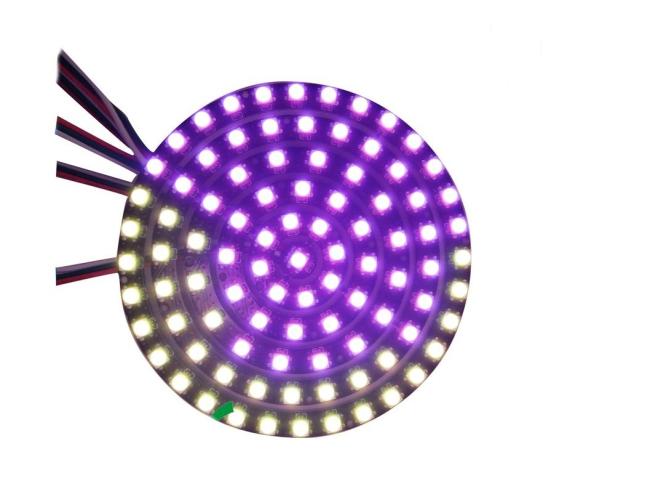

WS2812B/SK6812 Led Ring Light
-Use the WS2812B/SK6812 IC driver,can change many effects through led controller.
-1-32leds is a pack,also can sell only one size.
-Led Ring can use in Car led head light,the mirror light,and so on.
Application
1. lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Product Details

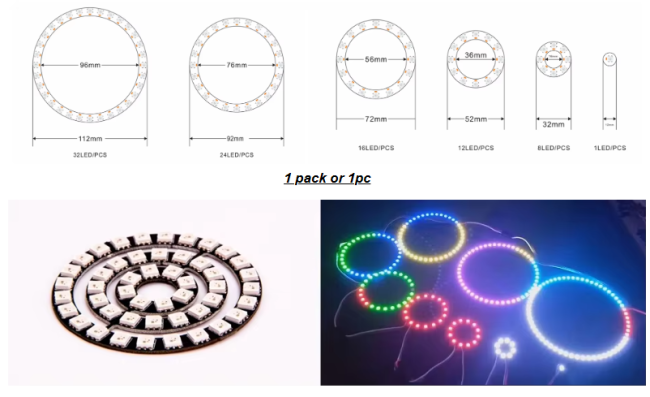

WS2812B/SK6812 led ring size
