S14-LED Glass-Encased Filament Tube, Linestra, 3W, Compliant With The New European ERP Standard
S14-LED Glass-Encased Filament Tube, Linestra, 3W, Compliant With The New European ERP Standard
Product Description
S14-LED Glass Housing Filament Tube (Linestra)
Linear Filament Tube, 3W, Compliant with New European ERP Standard
Lamp Holder Models: S14s, S14d
Dimensions: Length 300mm, Diameter: 30mm, 25mm (two sizes available)
Beam Angle: 360 degrees
Color Rendering Index: >90, 2200K
Flicker-free, Compliant with New European ERP Standard
High quality and simple installation
Typically used in Retail store,Bathroom,Residence and etc...
Main parameters,
| Model | Length | Diameter | Voltage | Wattage | LuminouS | Power | Dim | Color | Beam | Life time | Base | E-e-c | Case |
| No. | mm | mm | V | w | flux Im | factor | temperature | angle | h | ||||
| PS22901 | 300 | 29 | 230/120 | 2.80 | 150 | 0.80 | Dim | 1800/2200 | 360 | 15000 | S14s/S14d | Glass clear | |
| PS22902 | 500 | 29 | 230/120 | 4.00 | 250 | 0.80 | Dim | 1800/2200 | 360 | 15000 | S14s/S14d | Glass clear | |
| PS22903 | 1000 | 29 | 230/120 | 6.00 | 400 | 0.80 | Dim | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass clear |
| PS22904 | 300 | 29 | 230/120 | 3.20 | 200 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass clear |
| PS22905 | 500 | 29 | 230/120 | 4.80 | 330 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass clear |
| PS22910 | 1000 | 29 | 230/120 | 6.50 | 420 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass clear |
| PS22906 | 300 | 29 | 230/120 | 3.20 | 180 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass gold |
| PS22907 | 500 | 29 | 230/120 | 4.80 | 280 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass gold |
| PS22908 | 300 | 29 | 230/120 | 3.20 | 170 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass smoke |
| PS22909 | 500 | 29 | 230/120 | 4.80 | 280 | 0.50 | no | 1800/2200 | 360 | 15000 | S14s/S14d | G | Glass smoke |

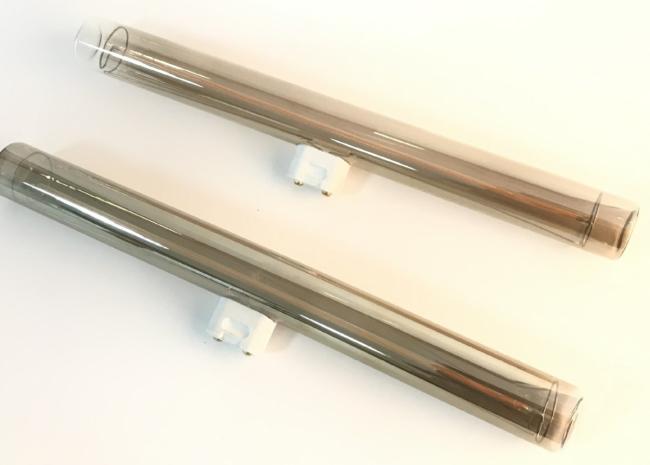

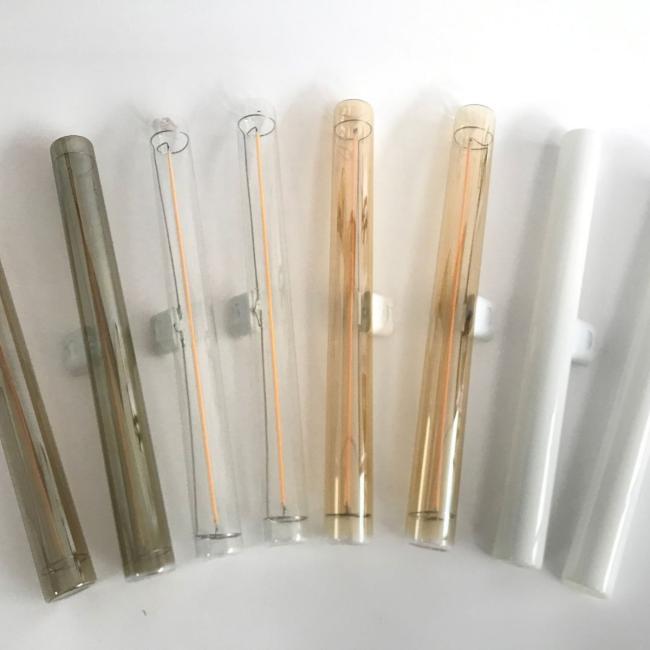

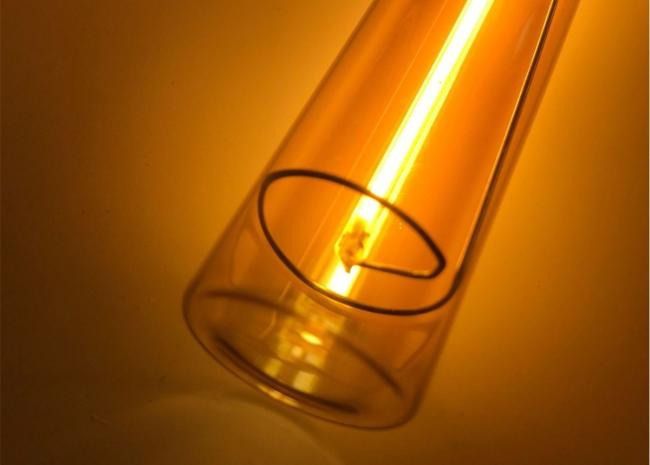

Pictures,
Areas of application
-Ideal for mirror lighting
-furniture,cupboard
-Hotels, restaurants
-Domestic applications
-Outdoor applications only in suitable luminaires
