Color Changing Flexible LED Strip Lights 24V DC 5050 Amber 590-610NM 120 LED / M

Price Negotiable
Price: Negotiable
MOQ: 5meters
Delivery Time: 7~10 days
Brand: Phenson
Product Description

Color Changeable 12VDC 5050 CW WW Red 2700K-6500K 620-630NM Strip Light 60LED/M

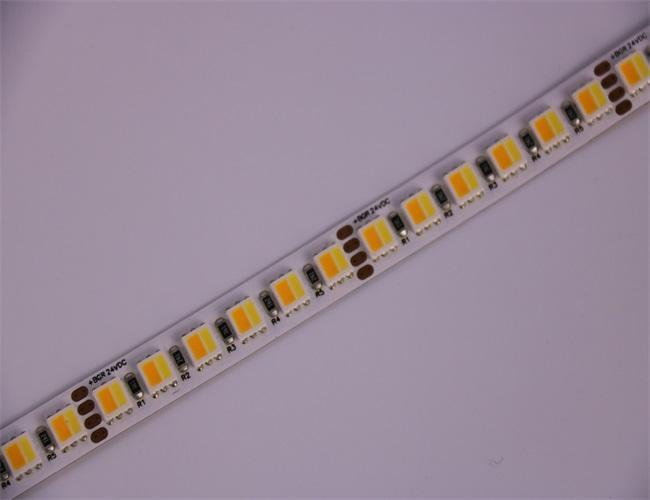

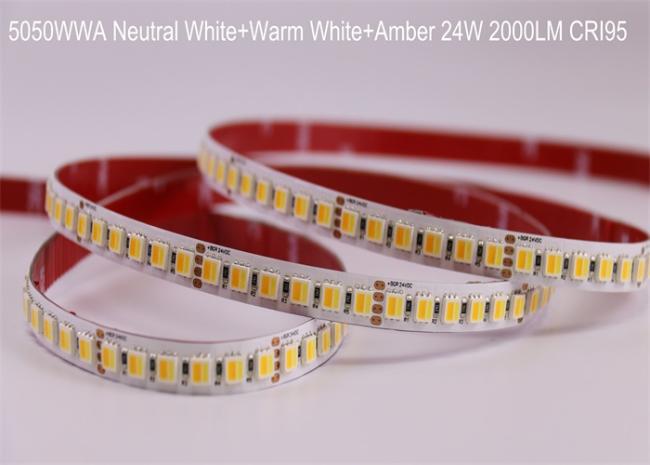

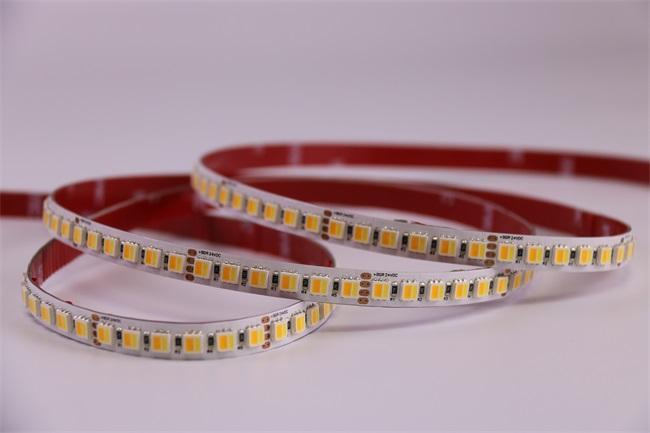

1) LED chip——SMD5050 CW+WW+Amber.

2)Standard Reel Length: 5meter/roll, also can be customized.

3)Cutted: you can cut this stuff pretty easily with wire cutters,

4)Power consumption: theory power is 24W/M, but the really power just about 20W/M.

5)Driver used:24VDC,6 led cuttable.

6)Adhesive tape: non-waterproof: with 3M adhesive on back side for sticky;

waterproof: screw+silicon clip, or 3M adhesive back side.



Product description:

DC24V, 5050 , 120 LEDs/m
Product:5050 DC24V strip
Dimension: L5000mm*W10 mm*H0.25mm
LED quantity: 600SMDs/pcs, 120 5050 SMDs/m
Thickness of PCB: 0.25mm
Working voltage: DC24V
Power dissipation: 24 W/m
Viewing angle: 120 degree



Product specification:

Ordering Code Colors Available LED features LED
Q’ty/m
PCB Voltage
(VDC)
Max Power
(W/m)
Waterproof Grade available (IP)
PS50WWA024120IP20 CW+WW+Amber   20~22lm 120 10mm white 24VDC 24W



IP20



FEATURES:

1). Low power consumption.

2). Every 6 LEDs can be cut with the marks, then re-join, “+,-”

3). Operating temperature: -40 to +50 degree Celsius

4). Match Power supplyer adapter, RGB Controller, Connector,

5). High luminous.

6). Lower heating during operation

7). Continuous length with the quick connector

8). Reel peaking and strong adhesive back, 3M glue tape sticked attached, easy installation,

9). Cuttable every three LEDs to provide convenient installation with lesser illumination costs

10). Major reduction in power costs, low power consumption and high intensity.
