CS2803 Black Digital LED Strip Lights Customized Length For Libraries / Hospitals
Programmable Full Color CS2803 Black Digital LED Strip Lights - Addressable LED Strip :
1. Addressable full color led strip
(CXS2803)——CS2803 IC built-in 5050 RGB LED chip.
2. Individually control :1 IC & 1 LED chip.
3. Standard Reel Lengt: 5 meter/roll, also can be customized.
4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.
5. Sticky: with 3M adhesive on back side for sticky.
screw+silicon clip, or 3M adhesive back side.
CS2803-30LED-Black
RGB Pixel Strip Light—IC Built-in CS2813 Digital LED Strip
1. Each SMD 5050 has an IC(CS2813) inserted in ,each LED individually address controlled

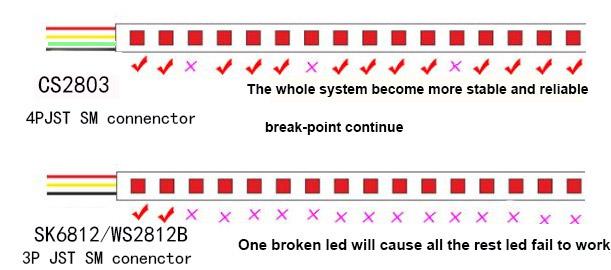

2. The most adavantage is one LED broken will not affect the other LED’s signal transmission
New Smart RGB Pixel Strip Light—IC Built-in CS2803 60LED Digital LED Strip1 meter led strip Specifications :
| Custom Lengths Available: | Yes |
| Input Voltage: | 5VDC |
| Max Power Consumption: | 9W per mtr |
| LED Quantity: | 30 per mtr |
| LED Classification: | Pixel RGB SMD |
| IC Type | CS2803 |
| Viewing Angle: | 120° |
| Standard Reel Length: | 5mtr |
| Operating Temperature: | -20 ~ +60°C |
| Storage Temperature: | -40~+80 °C |
| IP Rate: | non-waterproof,IP65,IP67,IP68 |
| Material: | Super slim flexible PCB |
| PCB Color: | Black and White both avaliable |

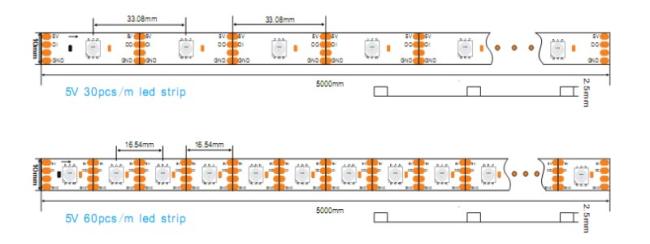

Addressable Break-point Continue LED Strip dimensions Specific :

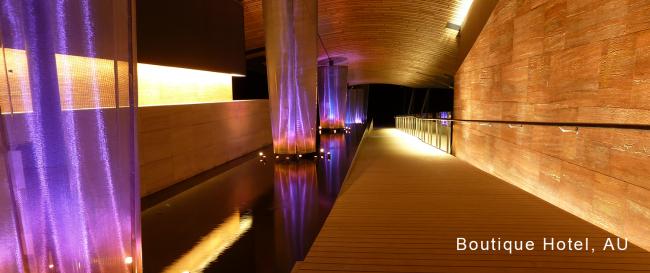

Application :
Building ceiling cavity design
Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations
Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
