RWS2811 SMD315 Side Emitting Digital LED Strip Light For Car Tail Light Warning Lamp

Feature :

  · Adopt international leading manufacturer ’s chips high brightness width angle , color consistency, and stable performance.

 · Each lamp beads form a loop, can be arbitrarily cut according to the needs of the length of the loop, without damaging other parts Convenient to Fix and install, flexible cutting operation make the construction simple, ultra-thin design, low temperature light source, make the selection for the auxiliary material more flexible on installation Energy saving, high brightness, low heat, low energy consumption, Clean, and beautiful.

  · Use DC5V to power supply, more safe on using Protection Rating: IP62 IP65 IP67 IP68, use range is wide Small, multi-colored, no radiation, high shock resistance, is a new generation of green high-tech

products.

· Built-in SMD315 led chip, LED circuit easier to install and safety.

· Flexibility PCB, even the place is curves or in the tight corners still easy to install.

· Convenient installation: 3M adhesive tape in the PCB back, just paste as you want.

· .Different waterproof level, IP22 for indoor application; IP65 / IP66 for outdoor or rain place; IP68 can use for underwater ≤3m area.
· Long working life with more than 2 years warranty.

Ws2811 Smd315 Double Color Side Emitting Led Strip Light Description :

· Product name:Smd315 Side Emitting Led Strip For The Car Tail Streamer Lamp Function specification:red line connect acc,black line connect GND.
1.Green:when connect acc, the led strip will ice blue color

2.White line for break:when break, the led strip will show red color.

3.Yello line for turn:when turn right,red color 25%brightness flow from left to right, when turn left, red 25%brightness from right to left.

4.Double flash ,red light will from middle flow two side with same speed, and in the middle will show red color long time.

5.break+turn:break and turn both have the signal, the red color flow and all bright, flow mode as 3 ,4.

Parameter :

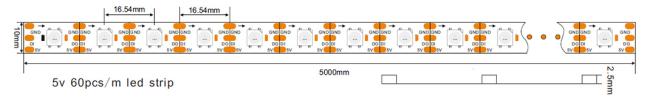

Dimension :

Application :

315 side emitting led strip light, nightclubs, shops, KTV, home, shopping mall, supermarket, building and any decorative lighting are etc.
