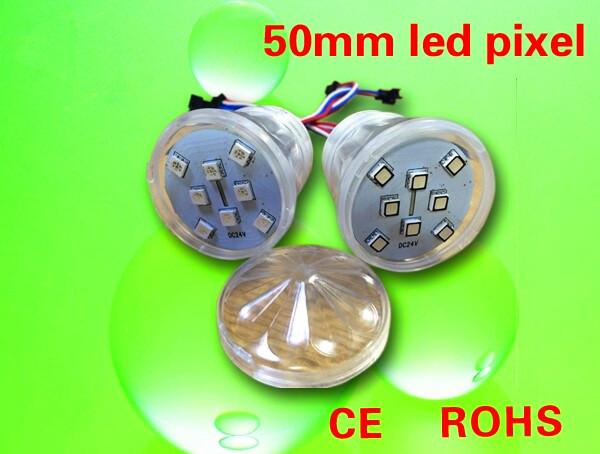

2.16W 50mm LED Pixel Lamp / Digital Rgb LED Pixels For Outdoor Signboard
High Cup Type Programmable 50mm Amusement Park LED Pixel Light ; 9leds 5050 ; DC12V ; 2.16W ; IP65 ; UCS1903 IC
Quick Detail :
Type: LED Pixel Modules
Model Number: PS-50mm-12V-12LED-2903
Chip Material: AlGaInP
Emitting Color: Tri-Color(Red-Blue-Green)
Luminous Intensity: R(4200)G(9600)B(4000) MCD
Luminous Flux(lm): 100LM
Optical Attenuation(%): 5
Power: 2.16w
Power Dissipation: 2.16w
Viewing Angle(°): 120
Color Rendering Index(Ra): 80
Color Temperature: RGB
Operating Temperature(℃):-20 - 60
Storage Temperature(℃): -20 - 60
Place of Origin: Guangdong, China (Mainland)
Certification: CE, RoHS
Technical Parameters :
| Light source | 5050 SMD LEDs with black frame |
| Beam angle | 120deg. |
| Operating voltage | DC12V |
| IC Model | UCS2903 |
| Diameter(mm) | 50mm |
| Drill hole diameter | 20mm |
| LED quantity | 9leds 5050 ;DC12V;2.16W |
| color | RGB full color;each module as one pixel;takes 3 dmx channels |
| color of the cover | clear cover with stripe |
Features and Benefits :
- This is the new type programable LED Pixel
each LED ball control by a IC Chip with 12LED
- the connectors on back side is non-waterproof
- each Pixel included 1pcs screw
- Recommended drill a 20-40mm Hole on the panel
during the installation
- Every 20pcs in a group ,supply power to it to avoid voltage drop
- lifespan:30000H.Warranty :2 Years
Applications:
The excellent pixel LED designed for outdoor digital lighting
They are the good choice for
Outdoor signboard
Casino Sign
Amusement park lighting
Packing :
| Selling Units: | Multiple of 20 |
| Package size per batch: | 1X1X1 cm |
| Gross weight per batch: | 0.6 KG |
| Package Type: | by carton |
Picture :
