Industrial LED Driver Power Supply LRS-200 200W AC / DC Power Source With UL
Meanwell Power Supply LRS-200 200W AC/DC Power Source With UL
• Universal AC input
• Withstand 300VAC surge input for 5 seconds
• Withstand 5G vibration test
• Most economical models with safety certificates
• Protections: over current/overload/short circuit
• No load power consumption: 0.2W~0.75W
• Ultra compact and 1U low profile
• Operating altitude up to 5000 meters
• Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1, -2-16 for household
Power Supply PARAM
| Model |
LRS-200-12
|
LRS-200-15
|
LRS-200-24
|
LRS-200-36
|
LRS-200-48
|
|
|
OUTPUT |
DC VOLTAGE |
12V
|
15V
|
24V
|
36V
|
48V
|
| RATED CURRENT |
17A
|
14A
|
8.8A
|
5.9A
|
4.4A
|
|
| CURRENT RANGE |
0 〜17A
|
0 〜14A
|
0 ~ 8.8A
|
0 ~ 5.9A
|
0 ~ 4.4A
|
|
| RATED POWER |
204W
|
210W
|
211.2W
|
212.4W
|
211.2W
|
|
| RIPPLE & NOISE (max.) Note.2 |
150mVp-p
|
150mVp-p
|
150mVp-p
|
200mVp-p
|
200mVp-p
|
|
| VOLTAGEADJ. RANGE |
10.2 ~ 13.8V
|
13.5 ~ 18V
|
21.6 ~ 28.8V
|
32.4 ~ 39.6V
|
43.2 ~ 52.8V
|
|
| VOLTAGE TOLERANCE Note.3 |
±1.5%
|
± 1.0%
|
± 1.0%
|
± 1.0%
|
± 1.0%
|
|
| LINE REGULATION Note.4 |
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
| LOAD REGULATION Note.5 |
±1.0%
|
±0.5%
|
±0.5%
|
±0.5%
|
±0.5%
|
|
| SETUP, RISE TIME | 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load | |||||
|
INPUT
|
VOLTAGE RANGE | 90 〜132VAC / 180 〜264VAC by switch 240 〜370VDC (switch on 230VAC) | ||
| FREQUENCY RANGE | 47 ~63Hz | |||
| 4A/115VAC 2.2A/230VAC | ||||
| INRUSH CURRENT (Typ.) | COLD STAR 60A/115VAC 60A/230VAC | |||
| LEAKAGE CURRENT | <2mA/ 240VAC | |||
|
ENVIRONMENT
|

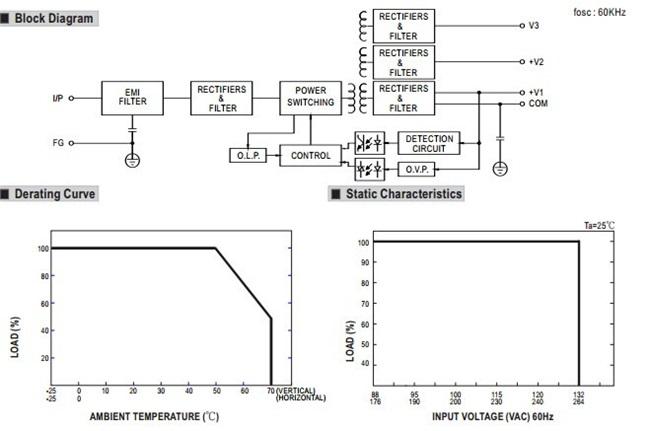

WORKING TEMP. | -25 ~ +70C (Refer to Derating Curve) | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85C, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/C (0 ~ 50C) | |||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |||
Power Supply APP
LRS series power supply applications for industrial automation machinery, industrial control system, mechanical and electrical equipment, electronics instruments, equipments or apparatus, household appliances.
Packaging Details
24V switching power supply carton for Meanwell Power Supply LRS-200-5 200w 5v Power Supply,Packing:0.76Kg; 0.66Kg; 15pcs/10.9Kg/0.78CUFT
Delivery Time
Shipped in 3 days after payment
